4K Triple Display USB-C Docking Station

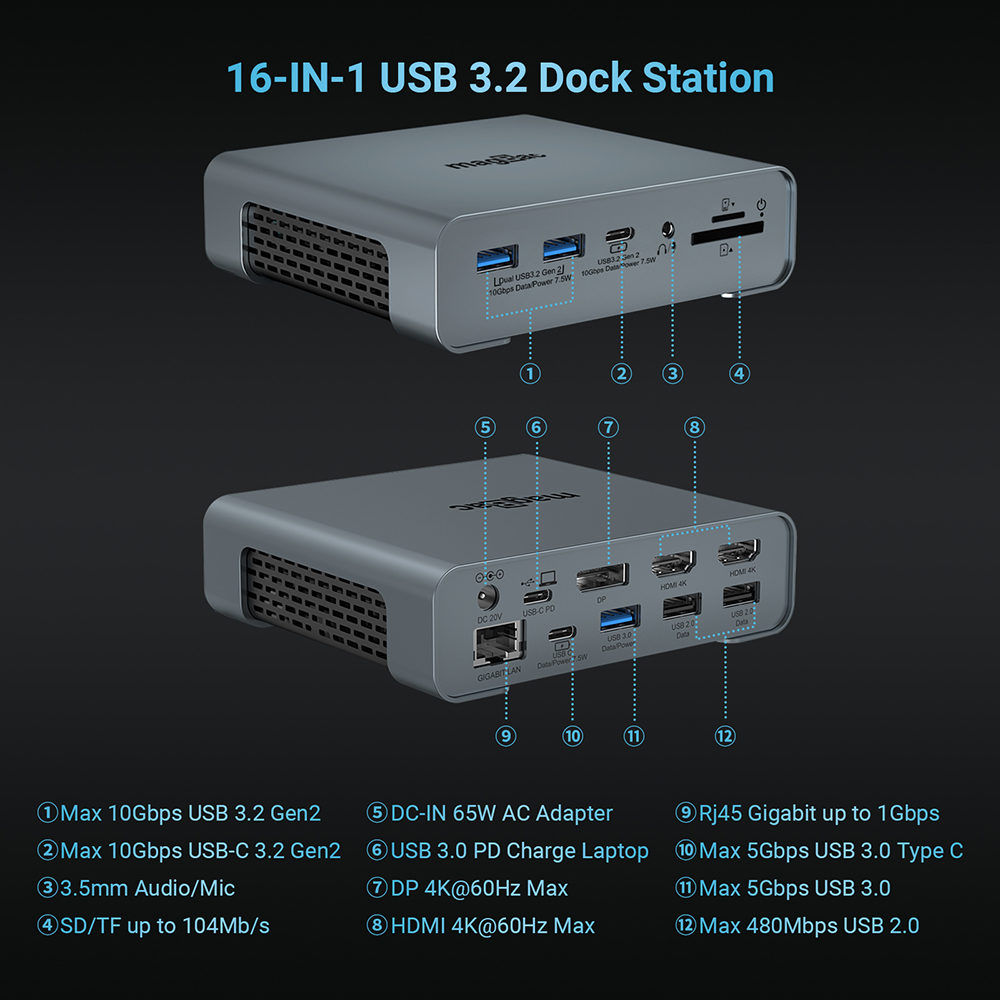

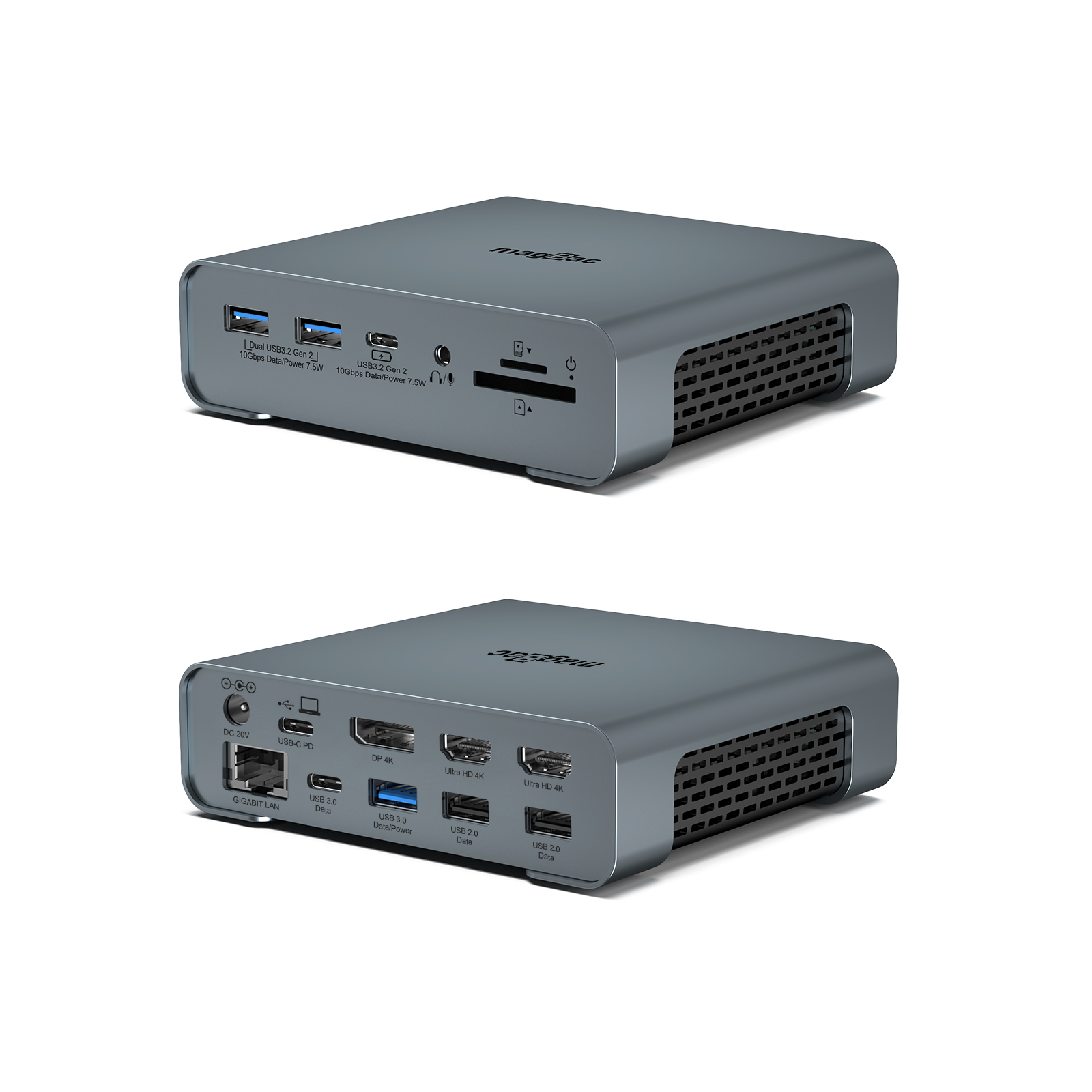

Interface Overview:

2 * HDMI: Max resolution up to 4K@60Hz

1 * DP Port: Max resolution up to 4K@60HZ

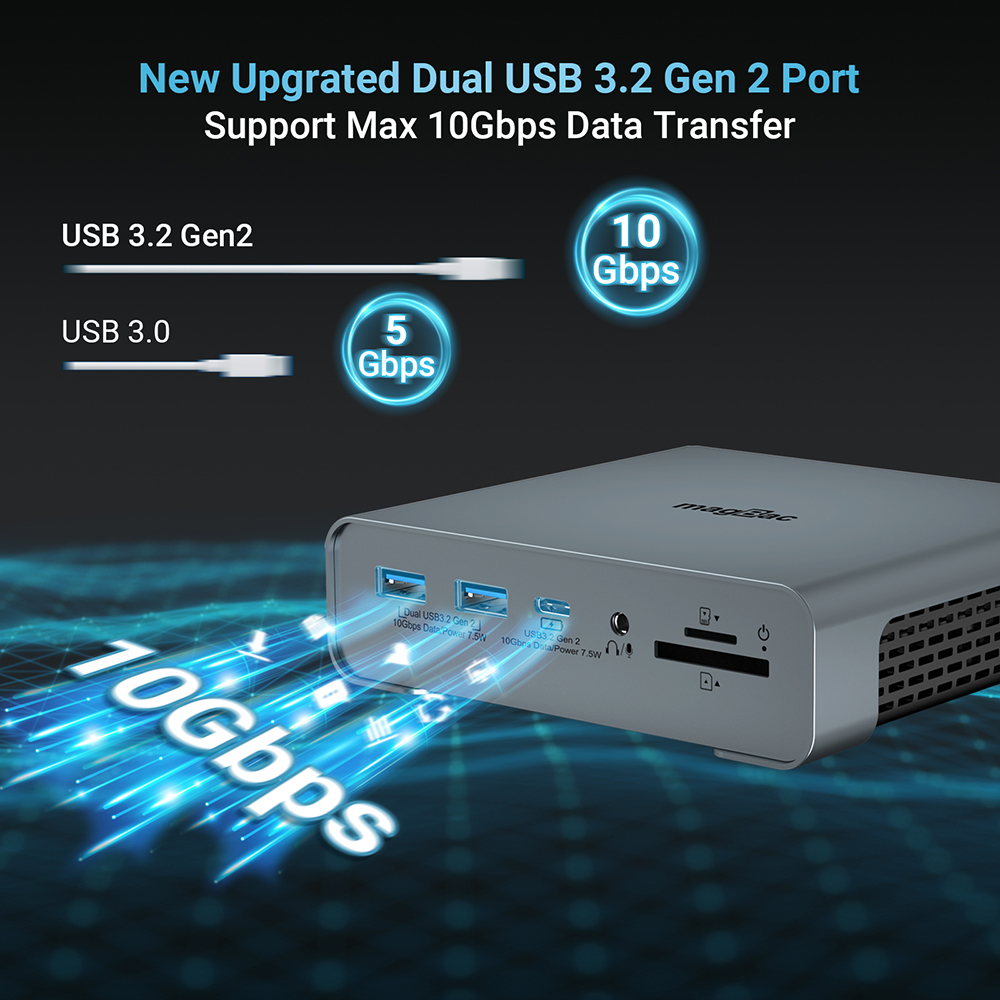

1 * USB C 3.2 Gen2 Port: Data transfer speed up to 10Gbps

1 * USB C Power Delivery: Max Up 100W

1 * USB C Port for Data and Power

2 * USB A 3.2 Gen2 Port: Data transfer speed up to 10Gbps

1 * USB3.0 Port: Data transfer speed up to 5Gbps

2 * USB2.0 Port: Data transfer speed up to 480Mbps

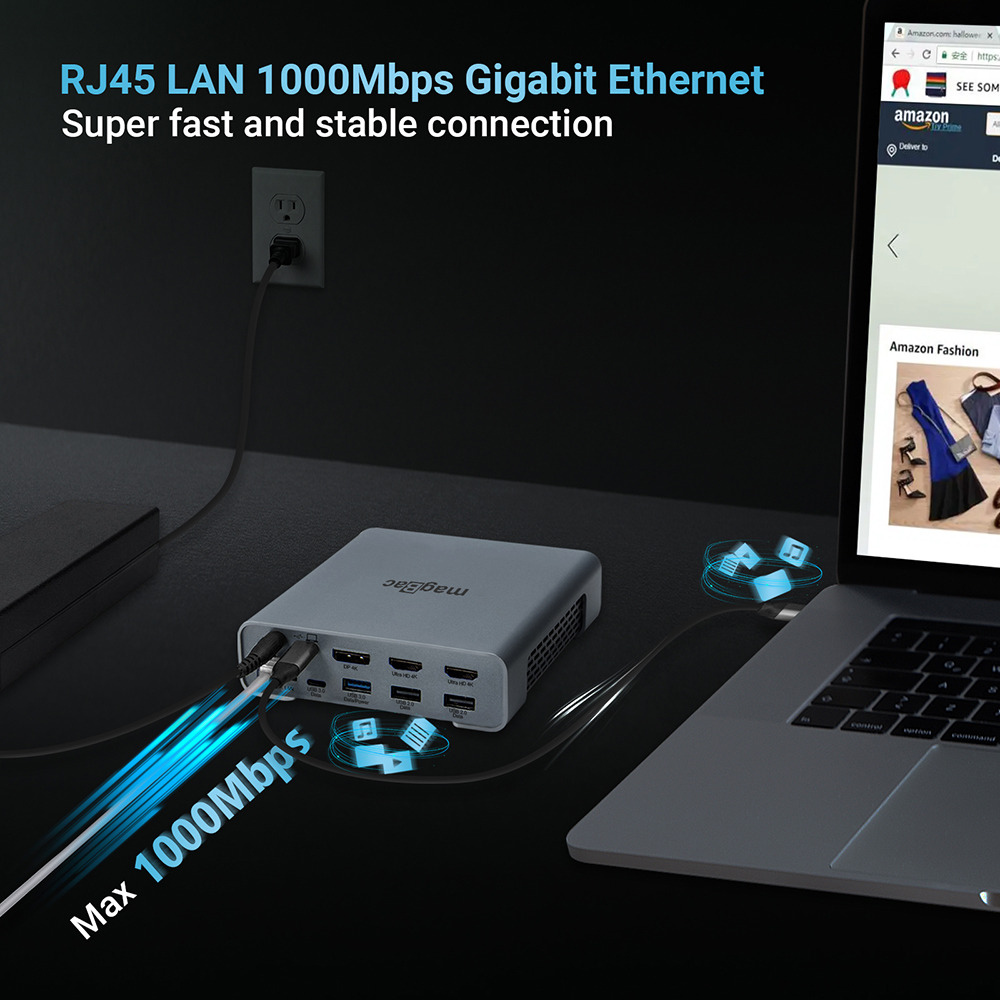

1 * 10/100/1000Mbps RJ45 Ethernet port

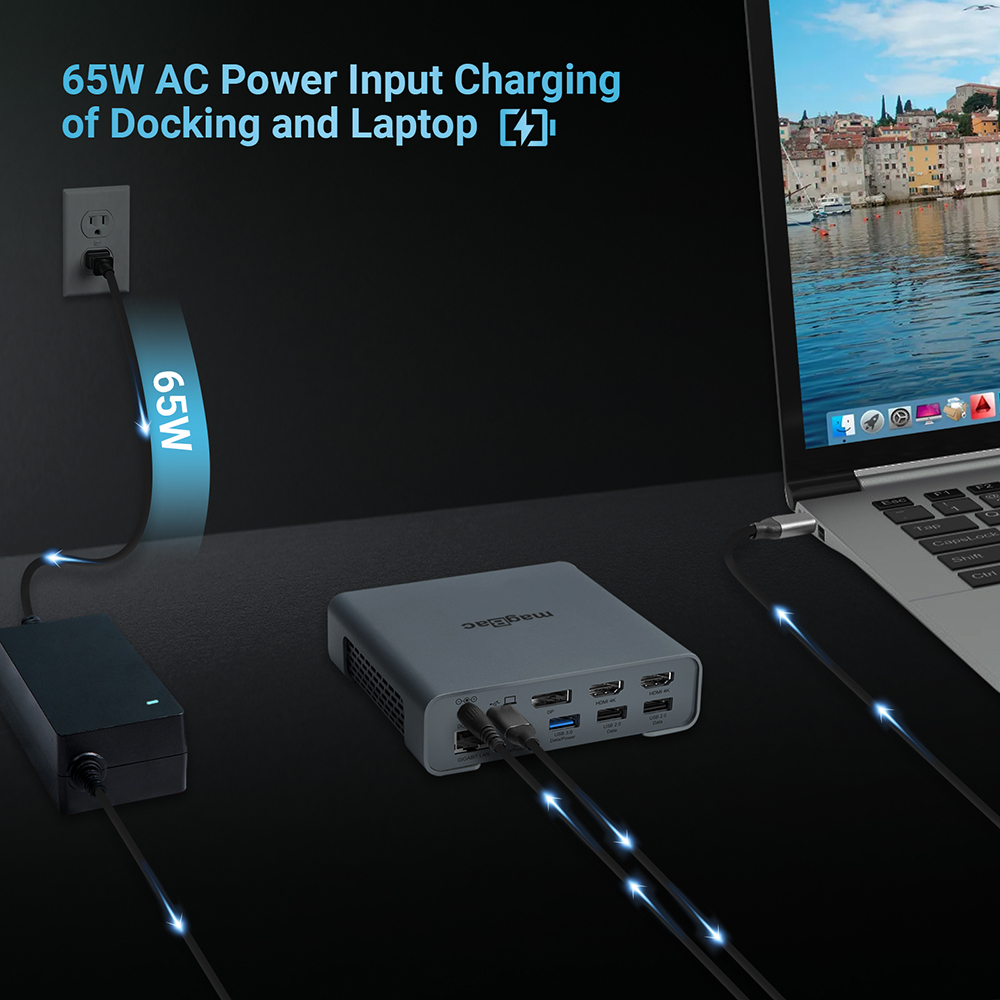

1 * DC IN Port

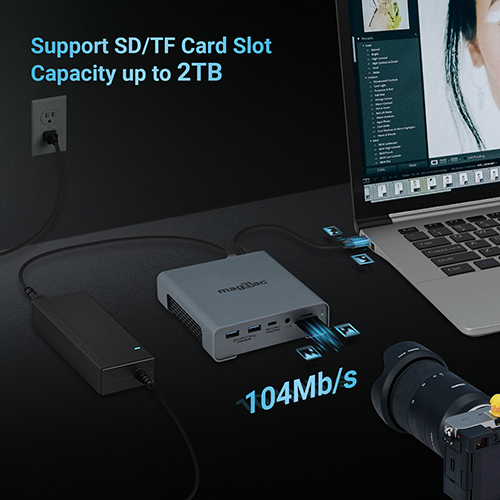

1 * SD Card Slot

1 * TF Card Slot

1 * 3.5mm Audio

P05S plus 16-in-1 docking station quipped with 2 HDMI and 1 DP, it can project up to 4 different contents on displays; Actual resolution up to 4K@60Hz when using a single HDMI/DP port, 4k@30Hz when using 2 or 3 video ports in Windows system.
Attention: MacOS laptop DOES NOT support MST mode, all monitors will mirror the desktop interface (only A-A+A+A or A-B+B+B mode).

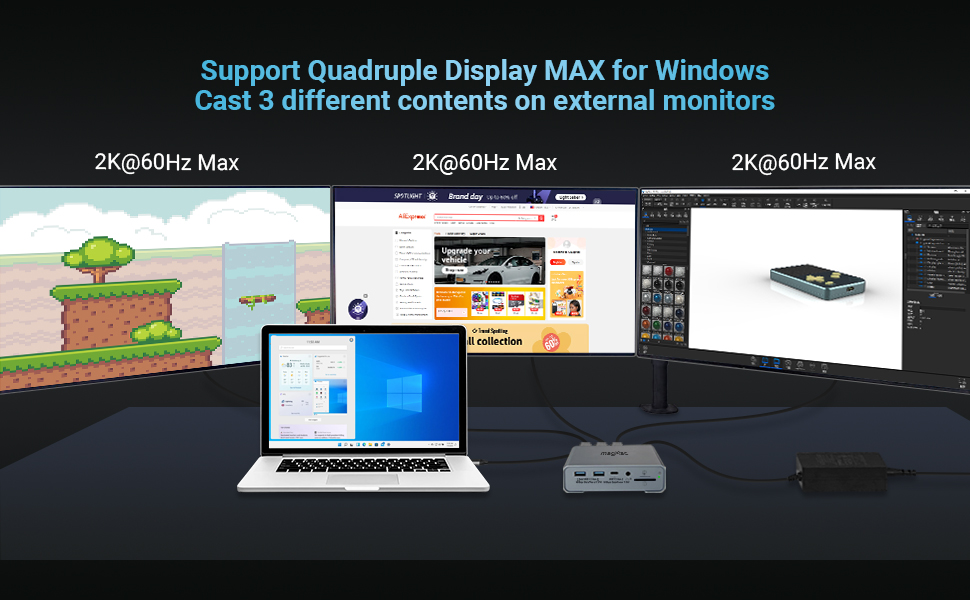

4 Monitors cast different contents display at the same time for Windows
Please Noted: Your laptop should have a full functional USB C port with DP1.4 Alt mode to support cast 4 monitors.

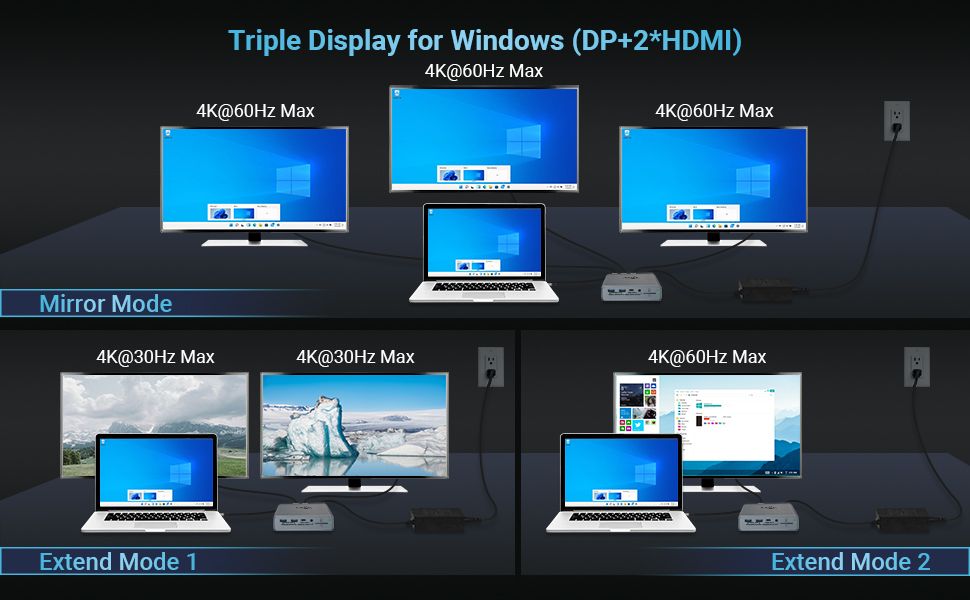

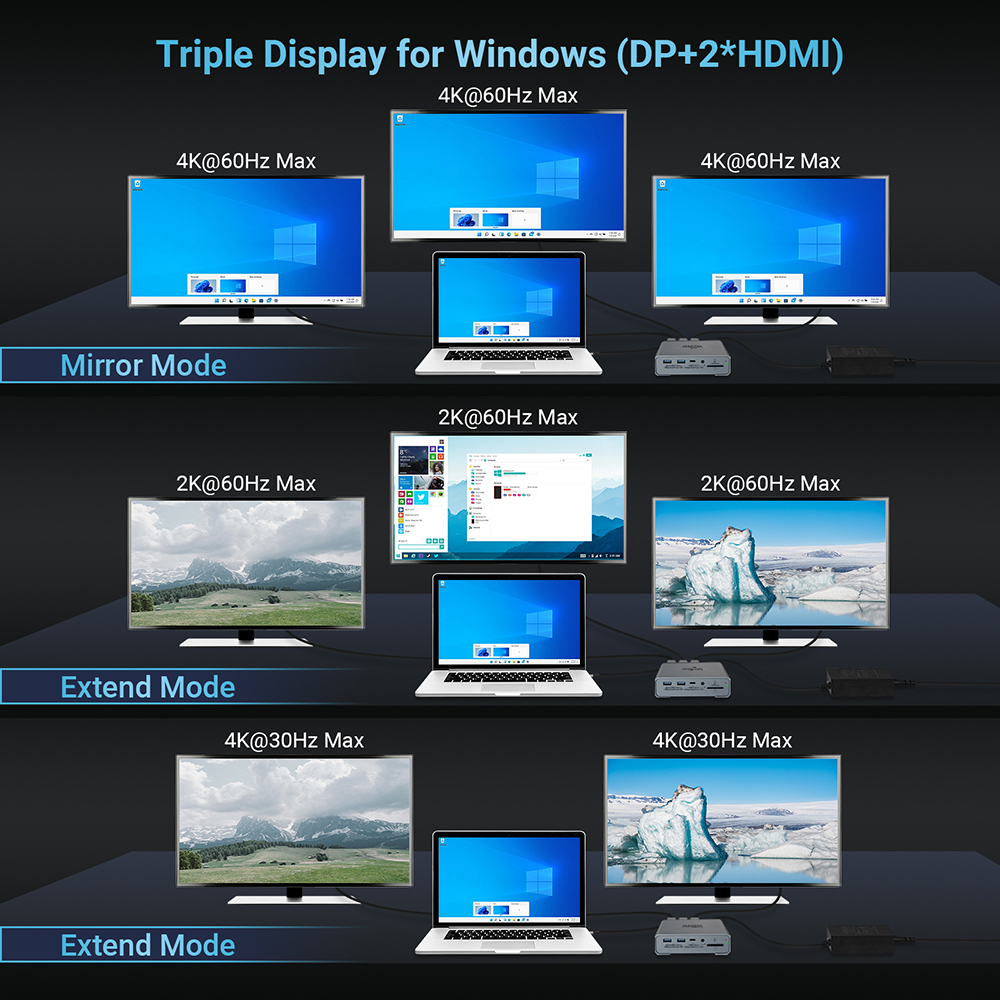

Triple Display for Windows
Extended mode:
1.Single Display HDMI or DP up to 4K/60Hz.
2.Dual Monitors Display Total output MAX 4K/30Hz 3840x2160 (HDMI+DP).
3.Triple Monitors Display max support 2K output for each at the same time.
Mirror mode:
1.Single Display HDMI or DP up to 4K/60Hz.
2.Two Monitors Display output MAX 4K/60Hz 3840 x 2160 (HDMI+DP).
3.Triple Display output MAX 4K/60Hz 3840 x 2160 (HDMI+HDMI+DP).

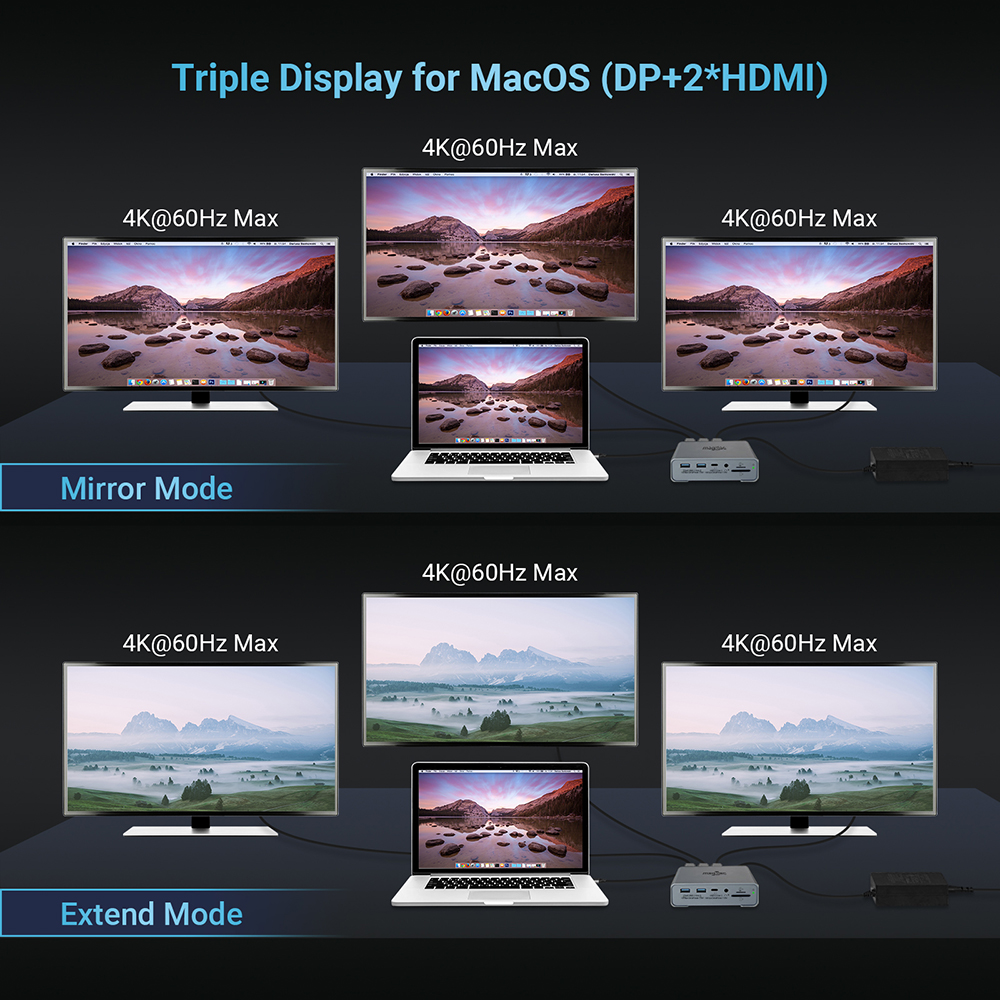

For MacOS:
Extended mode: Monitors Display like: A-B+B+B
Mirror mode: Monitors Display like: A-A+A+A
1.Single Display HDMI or DP up to 4K/60Hz.
2.Two Monitors Display output MAX 4K/60Hz 3840 x 2160 (HDMI+DP).
3.Triple Display output MAX 4K/60Hz 3840 x 2160 (HDMI+HDMI+DP).
