15-IN-1 DisplayLink Docking Station

(DS-XL01-DL)







4-IN-1 USB Hub 45W GaN Super Hub Fast Charging USB C HDMI 4K/60HZ Docking Station For Macbook Pro iPad Quick Charge For iPhone

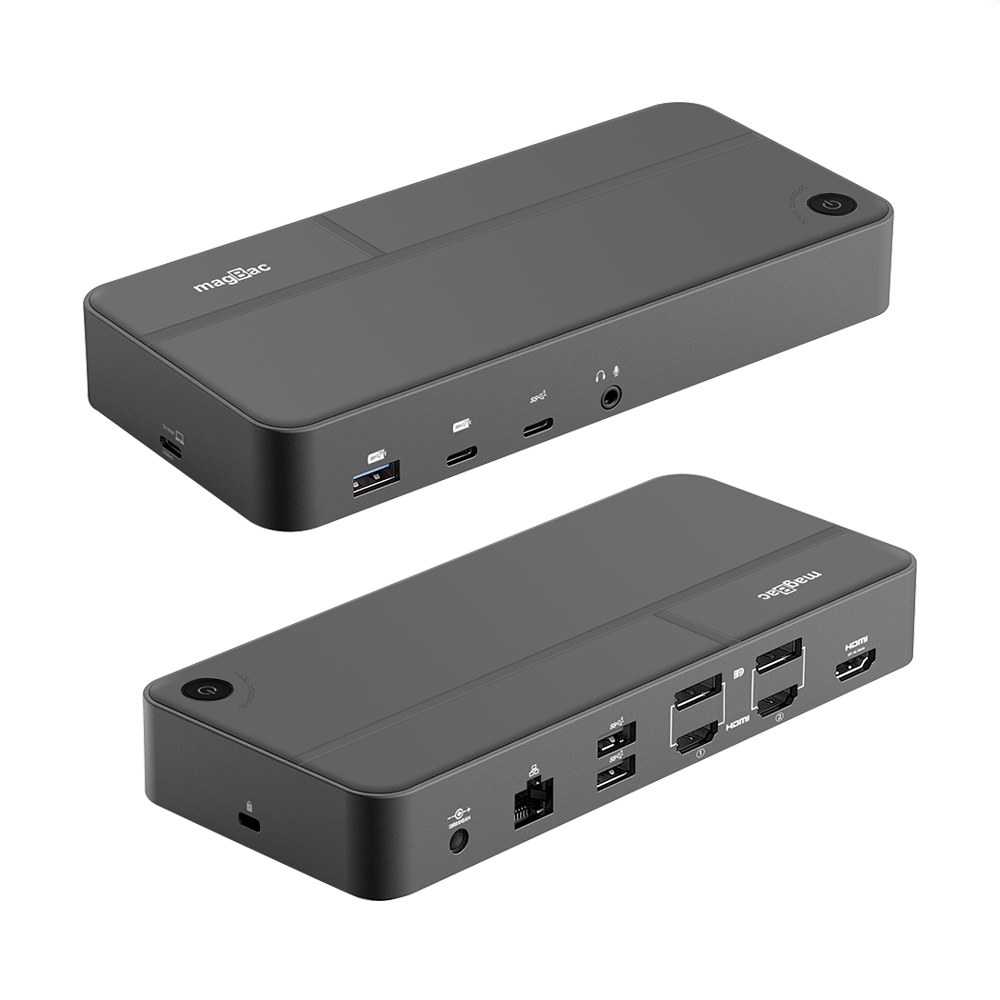

15 in 1 DisplayLink Docking Station

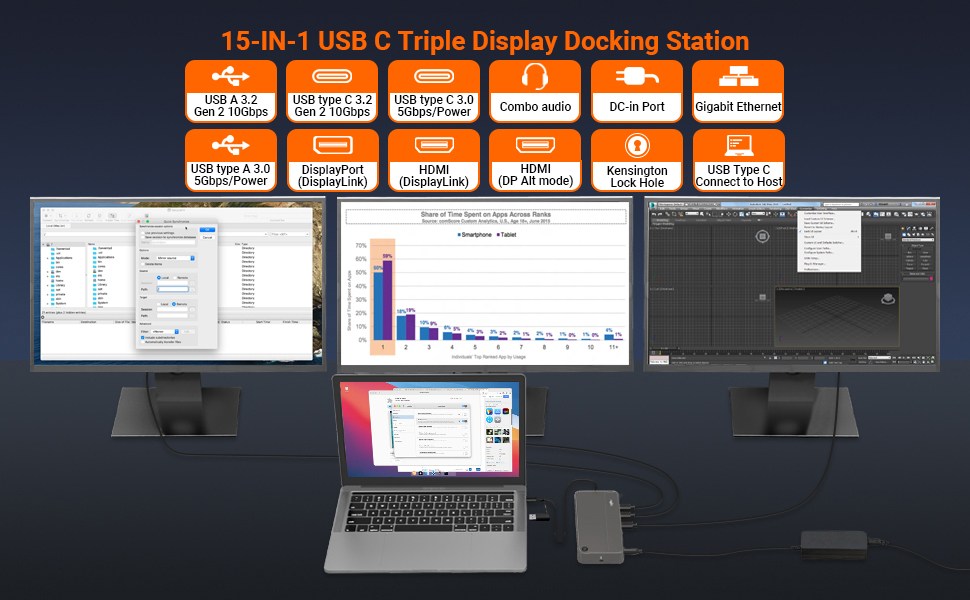

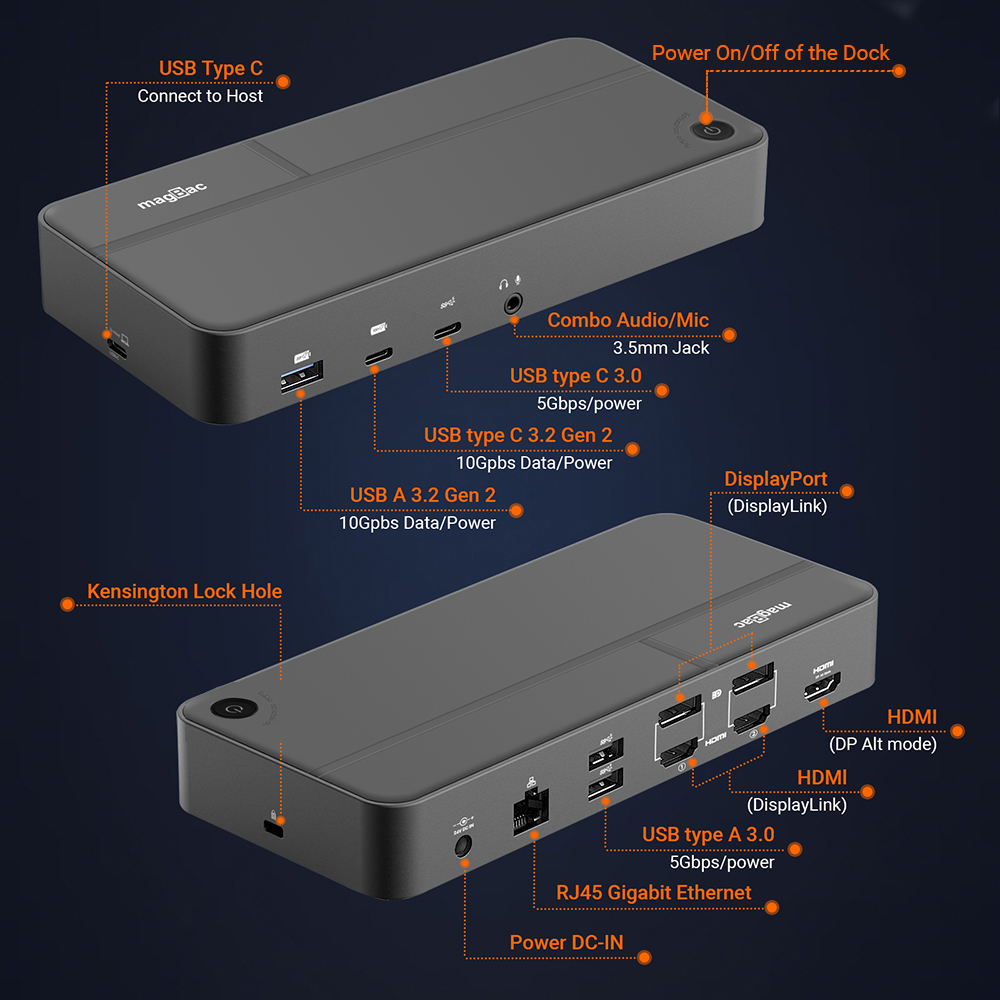

Interface Overview:

USB A 3.2 Gen 2: Support max 10Gbps data transmission and quick charging

USB Type C 3.2 Gen 2: Support max 10Gbps data transmission and quick charging

USB Type C 3.0: Support max 5Gbps data transmission

Combo Audio/Mic: 3.5mm Jack hole

DC-IN Port: Support 130W power input

RJ45 Gigabit Ethernet: Support 10/100/1000Mbps bandwidth

2*USB Type A 3.0: Support max 5Gbps data transmission

DisplayPort 1+2 (DisplayLink): Support max 4K/60Hz single video output

HDMI 1+2 (DisplayLink): Support max 4K/60Hz single video output

HDMI 3 (DP Alt mode):Support max 4K/60Hz video output

Kensington Lock Hole:Protect laptop in public areas

USB Type C Connect to Host

Power On/Off Button on the surface of the dock, docking operation can be On/Off by pressing it.

Note: This On/Off button only controls the dock itself, Not Host Laptop!

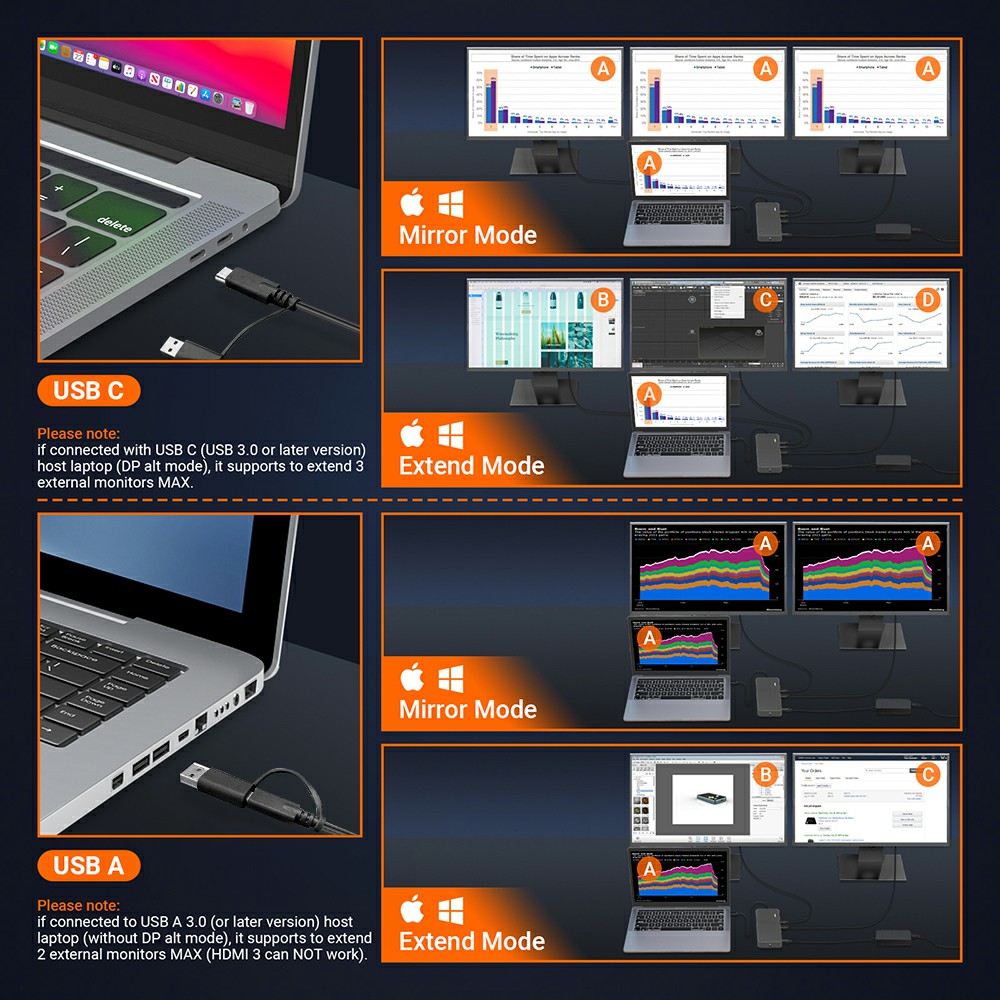

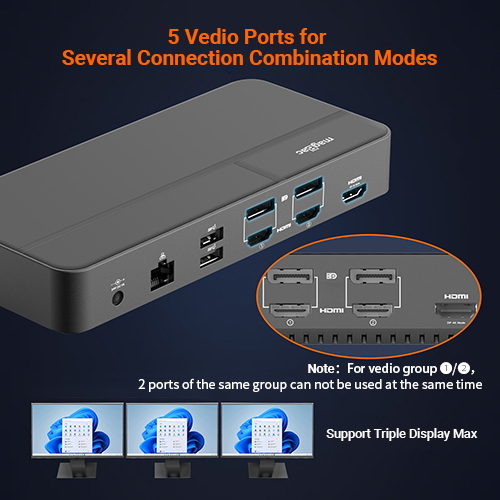

DS-XL01-DL docking station is compatible with MacOs/Windows laptop, which supports 4 connection modes and use USB C to USB C cable to extend max 3 external monitors with different content, realize ultral high resolution max 4K@60Hz single output. Please install the latest DisplayLink driver.

DS-XL01-DL allows you to use USB A to USB C cable to extend max 2 external monitors. Due to USB A port does not have DP Alt mode, it only support dual display mode of DisplayLink. HDMI3 use DP Alt mode protocol.

Attached 130W adapter included to suppurt power to the docking station and host laptop, up to 100W power charging to the laptop.

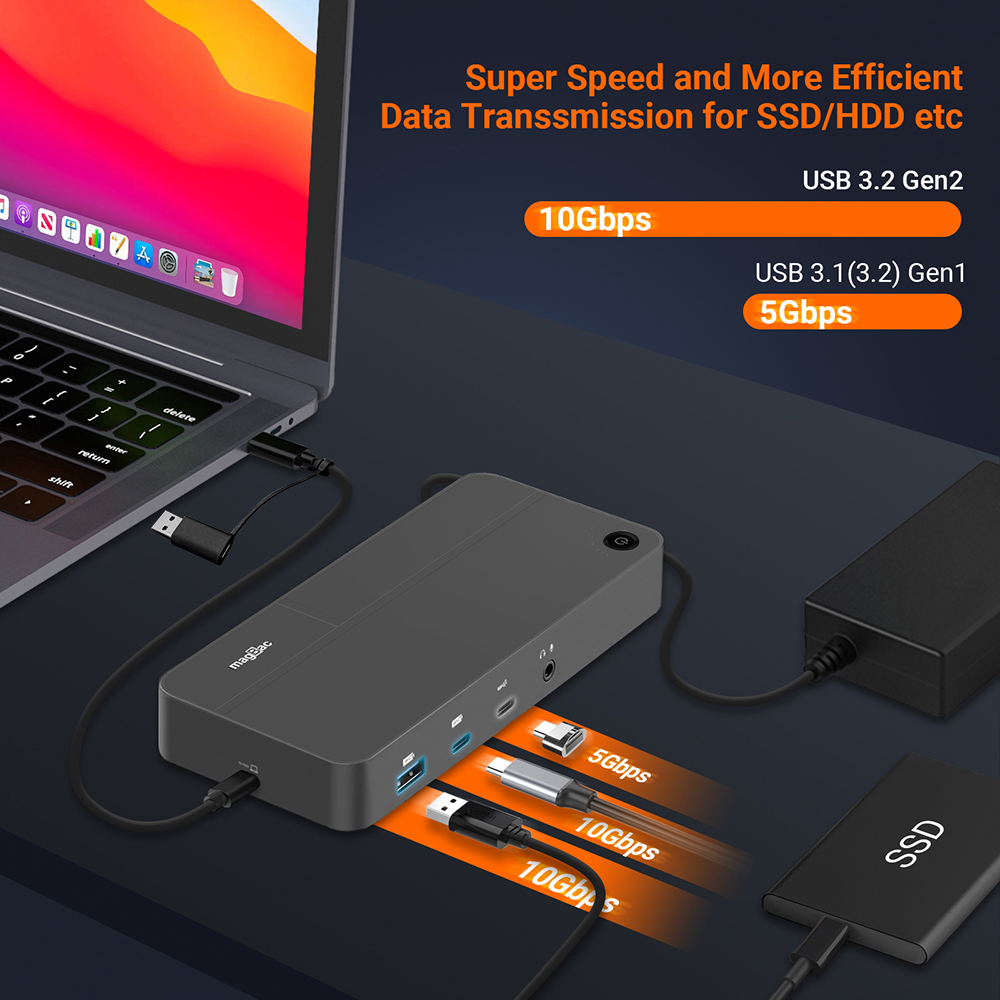

2 x USB C 3.2 Gen 2 port support super speed max 10Gbps data transmission and quick charging. Backward with USB 3.0, USB 2.0, provide more stable connection without wireless interference; Make Your Life More Intelligent.

Please Noted: The protocol of HDMI3 port is DP Alt mode, so the connection cable and USB C (A) port on host laptop must support DP Alt mode protocol,too. Otherwise HDMI3 cannot work.


Displaylink Technology USB C Docking Station For Macbook

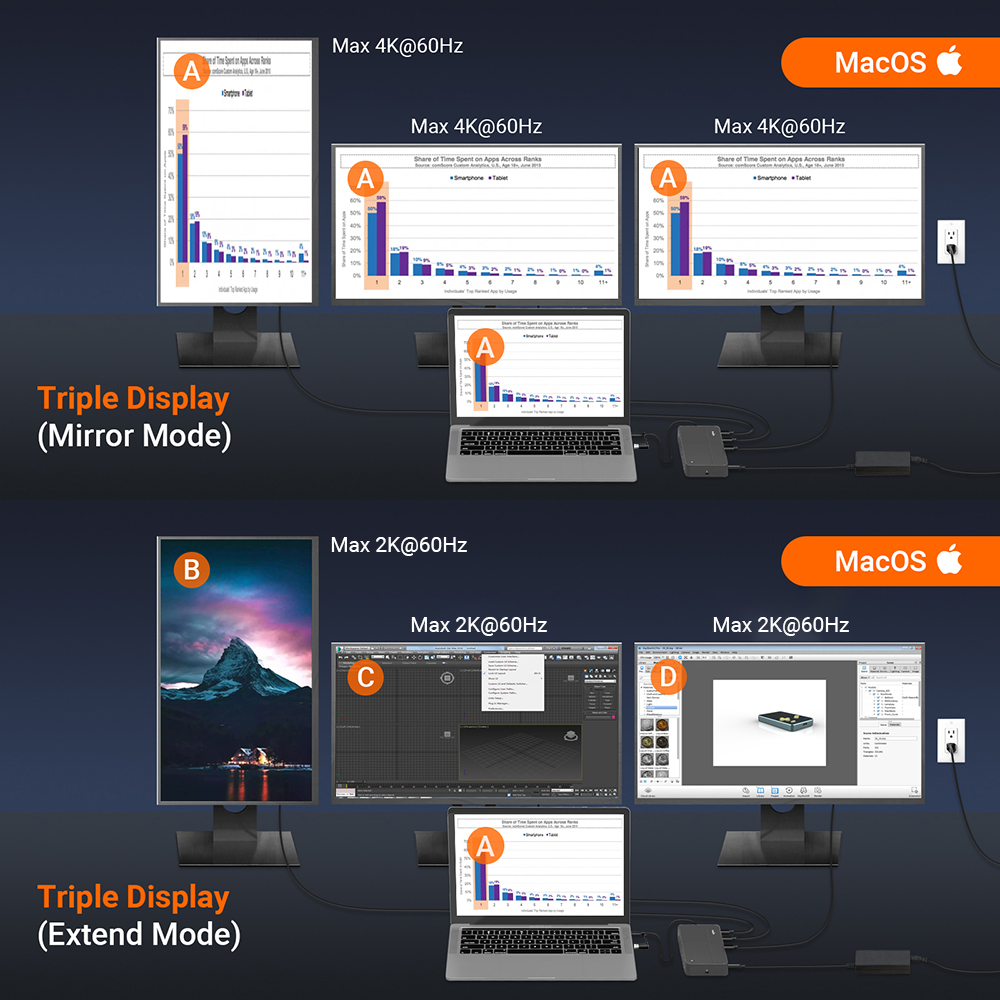

DisplayLink chip built-in for MST triple display model of Macbook Lapotp, you can enjoy real multi display performace, total 4 different content display through your host Macbook up to 4K/60Hz.
Wide Compatible with Thunderblot 3/4 laptop and USB A port Windows laptop

This universal USB C docking station is workable with any Thunderblot 3/4 Macbook and Windows laptops, and workable with any USB 3.0 port laptop after downloading the Displaylink drive software into your host laptop.

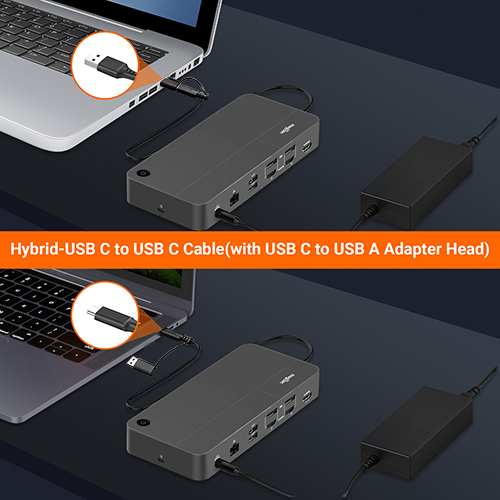

USB C to USB C Cable and USB A to USB C adaptor for Connecting of Laptop

There're 2 styles connection of DS-XL01-DL USB C docking station to connect to the host laptop.
You can use attached hybrid USB C to USB C cable connect to the host directly.
If your laptop only has USB A PORT, please use our hybrid USB C to USB A cable.





Tech Specs
