14-IN-2 USB C Docking Station

(DS-P06ST)

Magbac 14-IN-2 USB C HUB P06ST Triple Monitor USB C Hub 4K HDMI RJ45 LAN USB 3.0 USB HUB Type C Docking Station For Macbook Pro

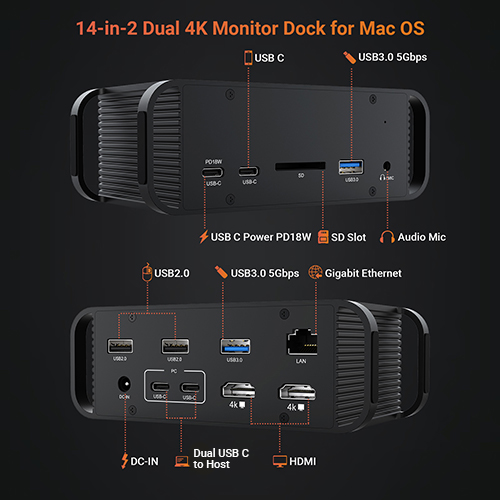

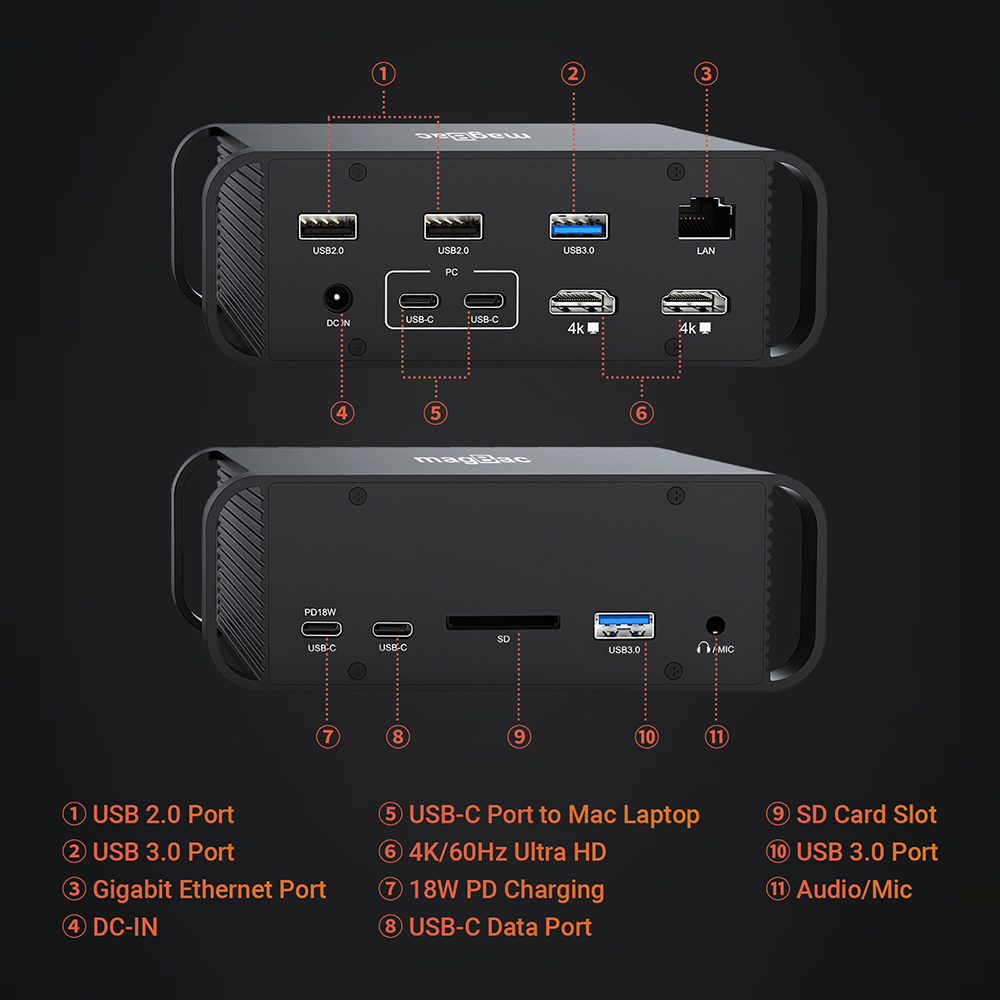

Interface Overview:

2 * USB-C for MacOS laptop MST function (connect the host laptop)

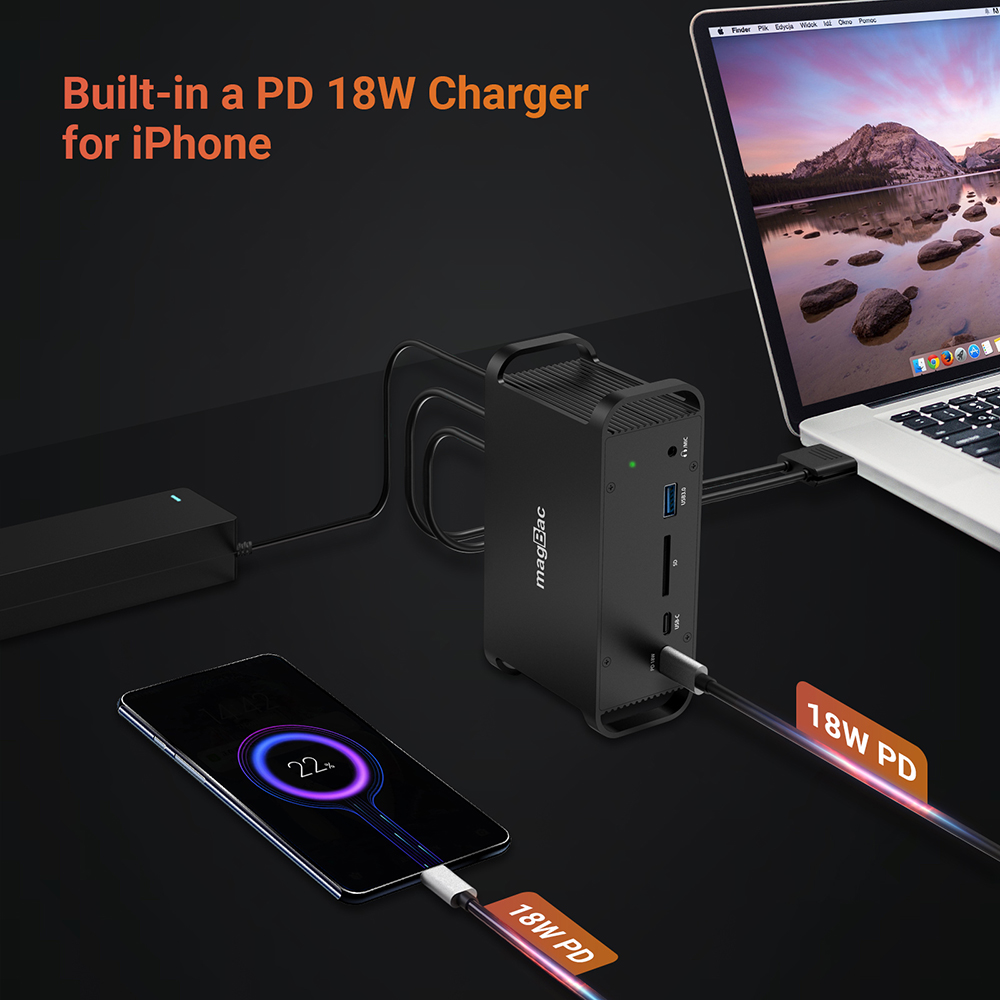

2 * USB C female: one is PD charging (18W for Iphone12), the other for data transmission

2 * USB 3.0: 5V/1.5A, max 5Gbps + two USB 2.0 port, max 480Mbps

2 * HDMI 2.0b: max 4K@60Hz resolution

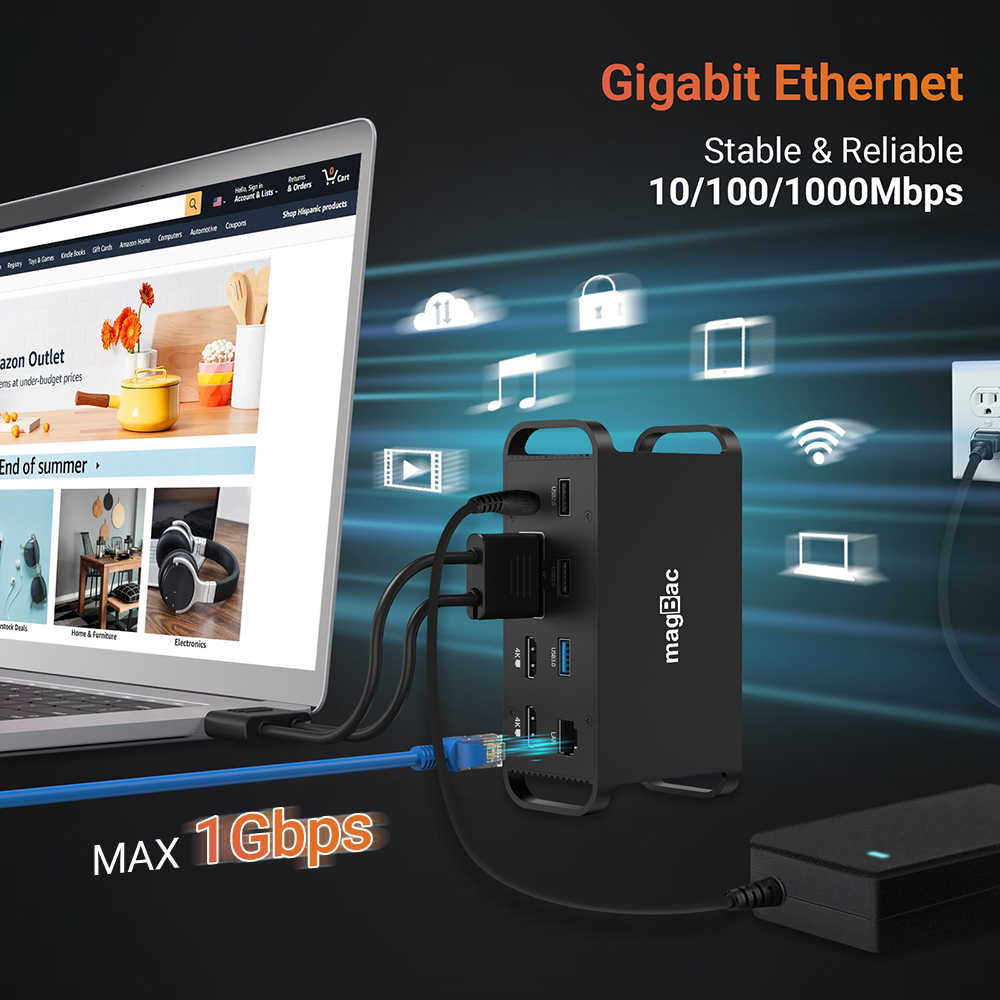

1 * Gigabit Ethernet: 10/100/1000Mbps bandwidth

1 * 3.5mm Jack: Audio / Mic 48Khz

1 * DC-IN port for power charging

1 * SD card slot: SD/TF: SD / SDXC / SDHC / MMC / RS-MMC

1 * SD/Micro SD card slots

100W AC power adapter for charging docking and laptop and other USB C device

Anti-slip strip for two sides

Especially for Mac OS to Triple Display: Our Type C Dock has a pair of twin USB C Cables that can let Mac OS extend two different Screens (A-B+C). Plug and Play, no need to download any Software.

COMPATIBILITY: MacBook Pro 13inch 2016 / 2017 / 2018 / 2019 / 2020 / 2021, MacBook Air (Retina 13-inch) 2018 / 2019 / 2020 / 2021 Macbook pro 14inch 2021 M1 Pro & M1 Max MacBook Pro 15inch 2016 / 2017 / 2018 / 2019 / 2020 / 2021 MacBook Pro 16inch 2019 / 2021 M1 Pro & M1 Max

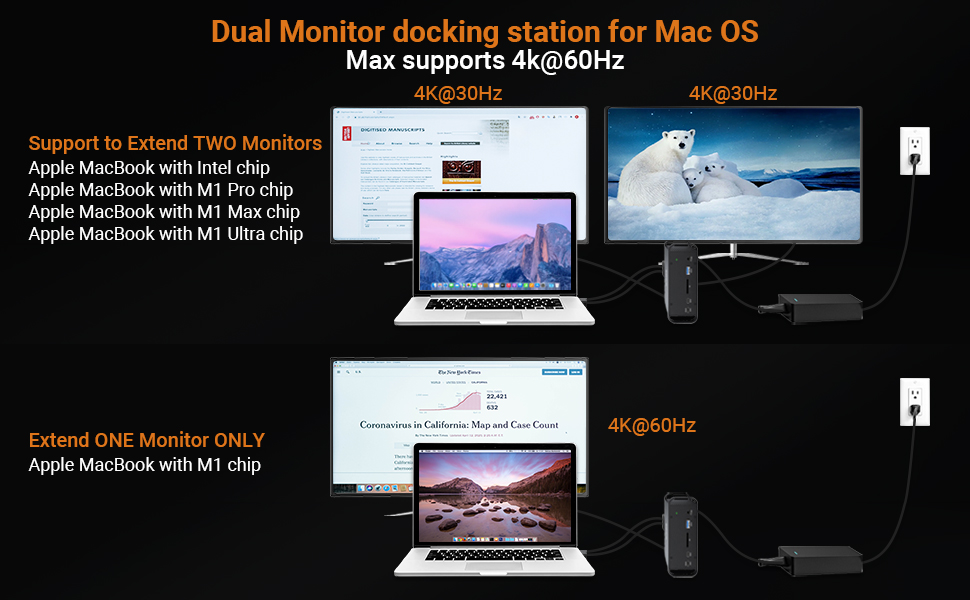

NOTES: 1. Windows OS and MacBook with M1 and M2 chips (ONLY can get ONE external monitor) are not recommended to use this dock. 2. M1 Pro / M1 Max and M1 ultra chip Macbook supports extending 2 external Monitors. 3. 4K@60Hz or 30Hz output is up to the Mac Laptop's Displayport Protocol (DP 1.4 support 4K@60Hz, DP 1.2 4K@30Hz), please check the detailed spec of the host laptop.

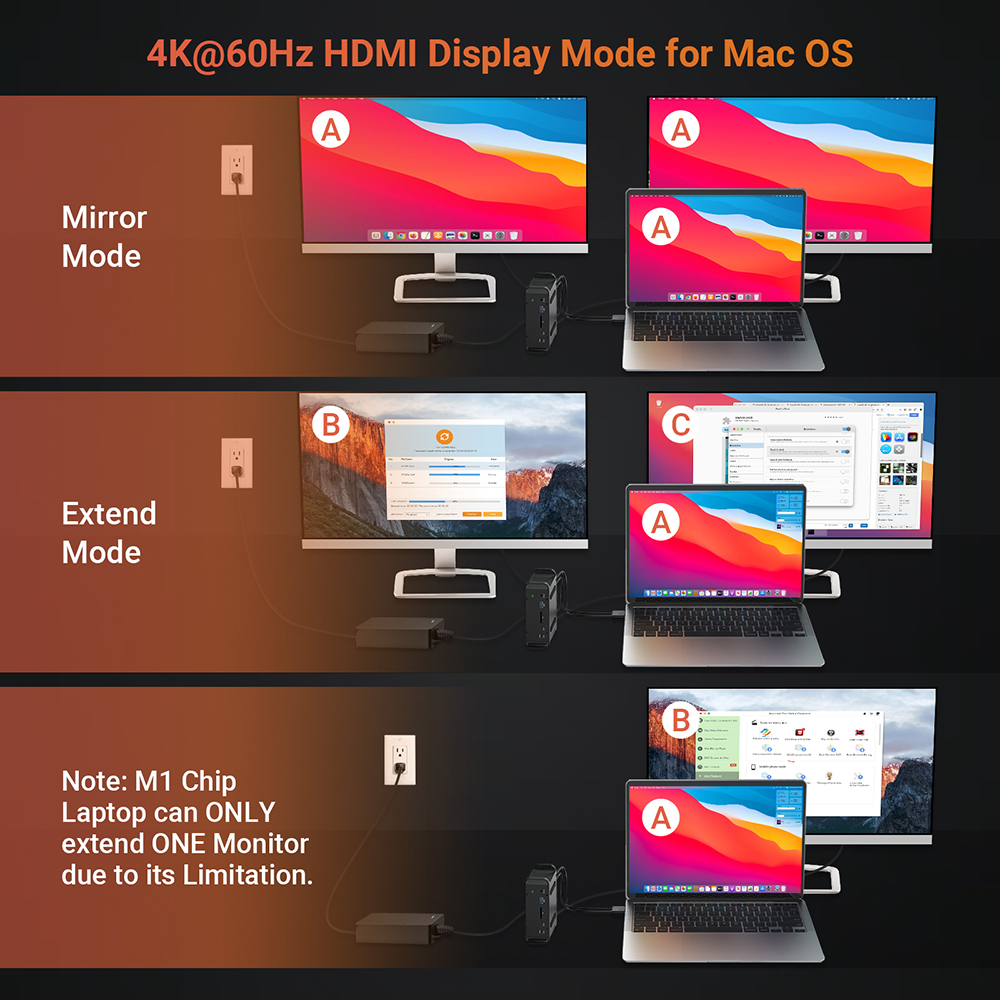

Mirror / Extend Mode for Windows & MacOS
14 ports—meeting the needs of your work;
2 x 4K@60Hz HDMI ports, 2 x USB 3.0, 1 x USB C 5Gbps, 2 x USB 2.0 for wireless keyboard and mouse, 3.5mm Jack (Audio/Mic), SD reader slot & RJ45 Gigabit Ethernet, 18W PD USB C port, DC-IN port.
We specially equip a standard 100W AC Adapter for this docking station.

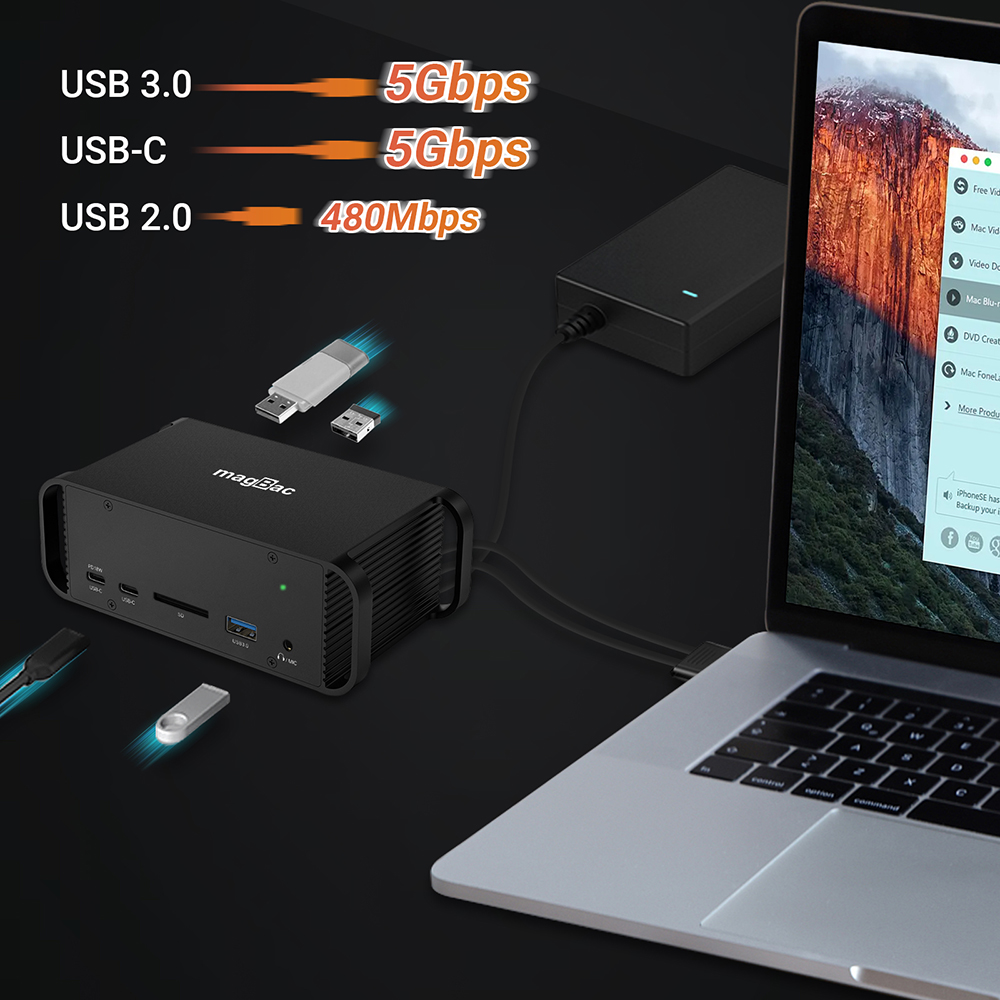

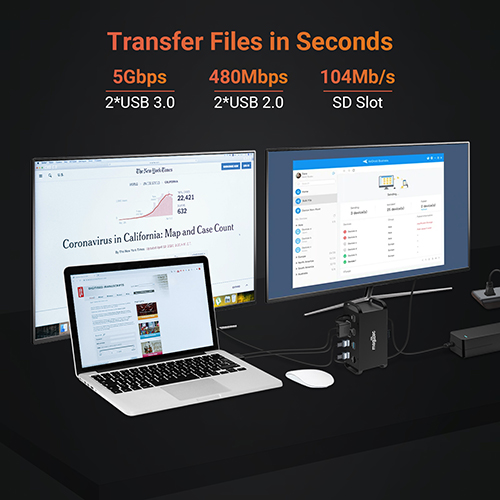

High speed data transfer

This is a desk lie-flat and standing designed USB C Mac Dock, that supports Fast data transmission.
4 * USB A ports support a max 5Gbps data transfer when the SD slot can read a maximum of 2TB memory card with a rate of up to 104Mb/s.

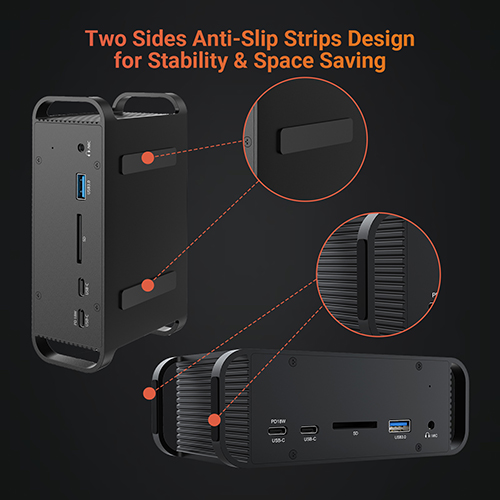

Two sides anti-slip strips design for stability and space saving
