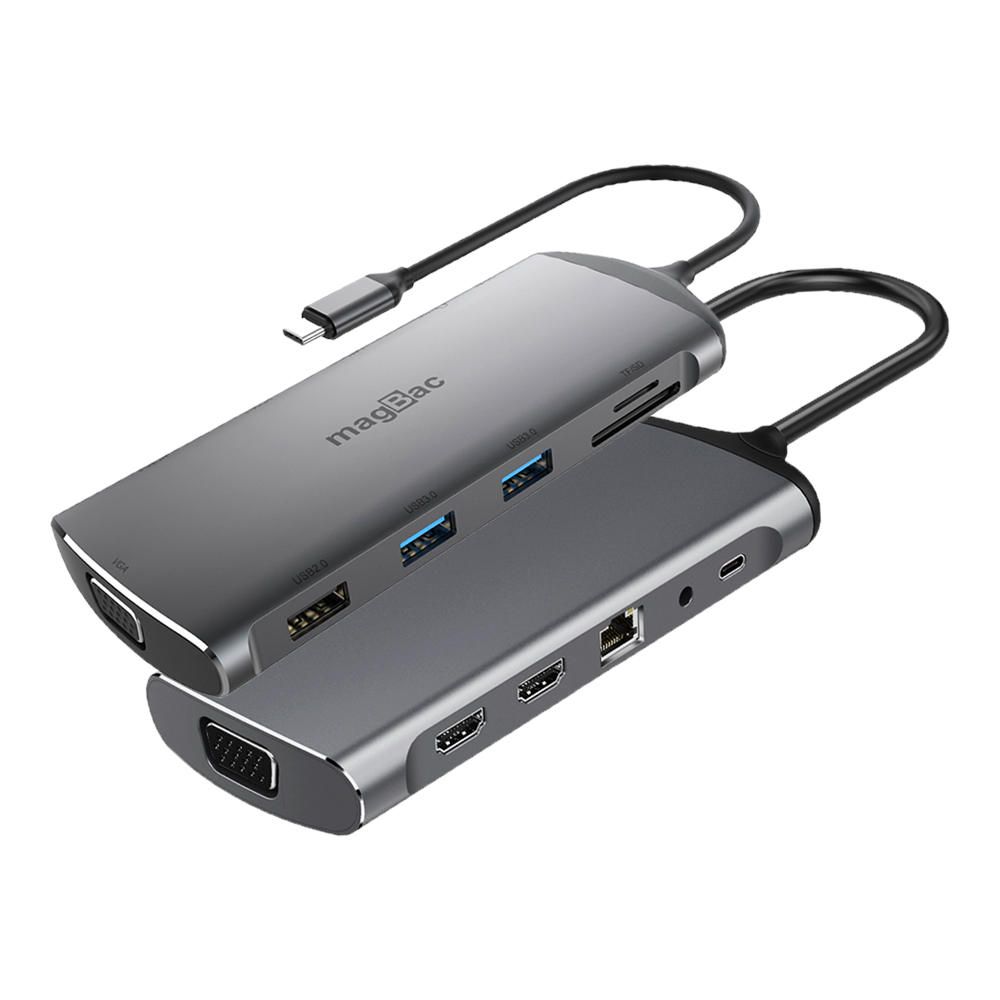

11-IN-1 USB C HUB Docking Station


Dual Monitor Laptop Docking Station USB C HUB For Macbook Pro Hub USB C HDMI VGA RJ45 PC Accessories P01s Type C Hub For Lenovo

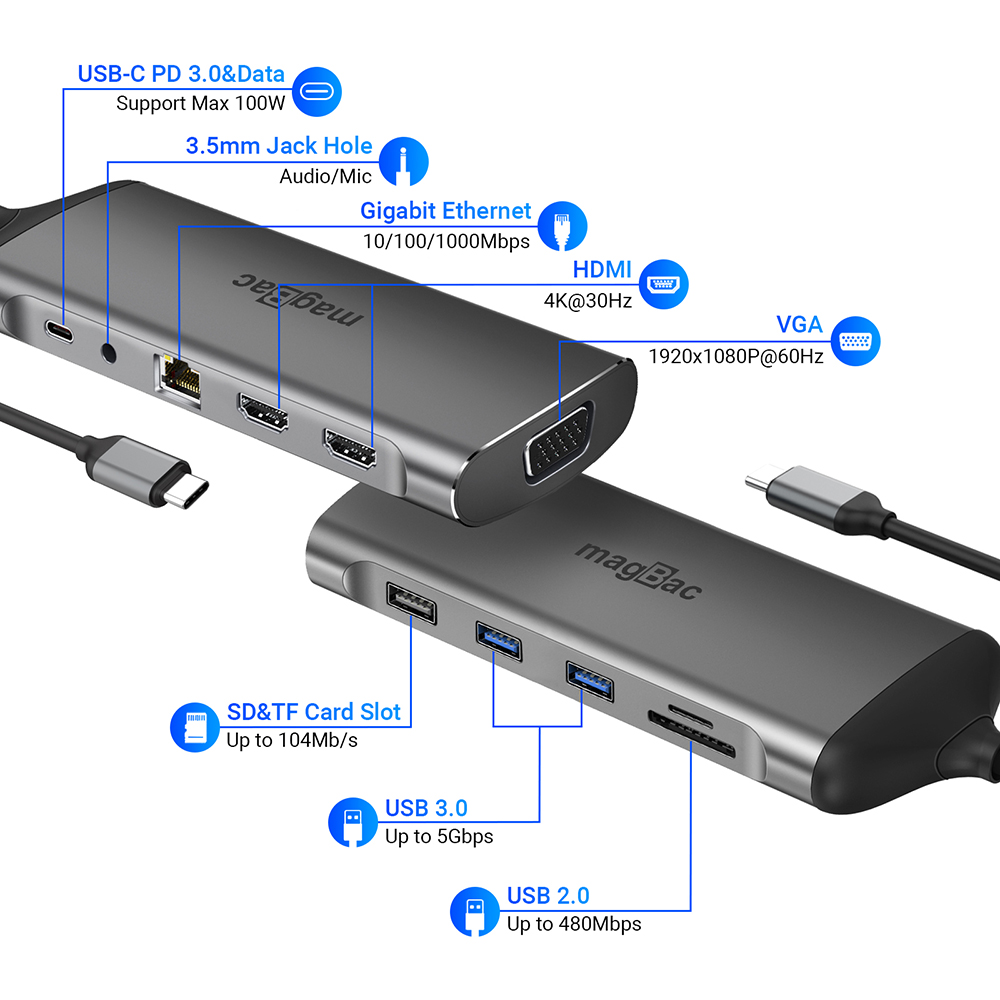

Interface Overview:

1 * USB 3.1 Type-C connector cable (Built-in)

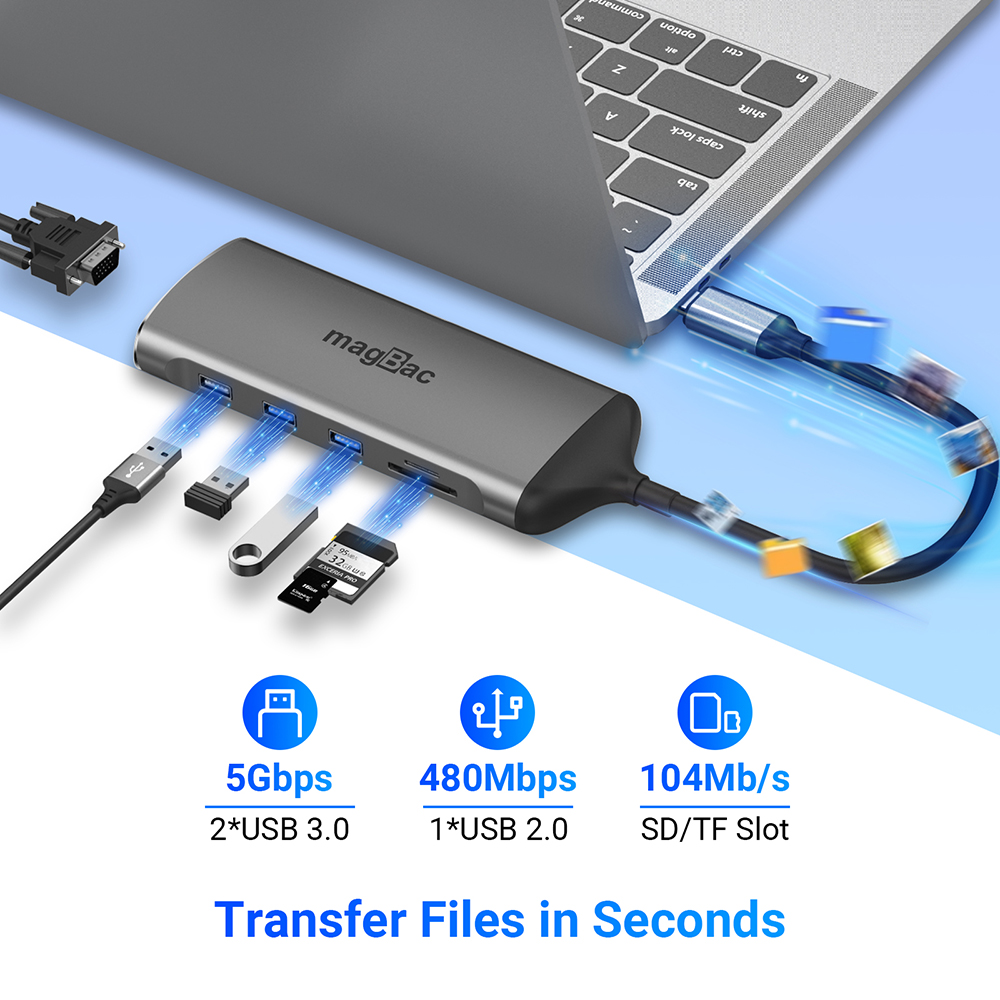

2 * USB 3.0 Type-A port 5Gbps

1 * USB 2.0 port

2 * HDMI output port 4K/30Hz

1 * VGA output port 1080P/60Hz

1 * Rj45 Gigabit 10/100/1000Mbps

1 * SD card slot

1 * TF card slot

1 * 3.5mm Jack hole for Audio/Mic

1 * PD charge port (it could support 100W adapter) / support data transfer

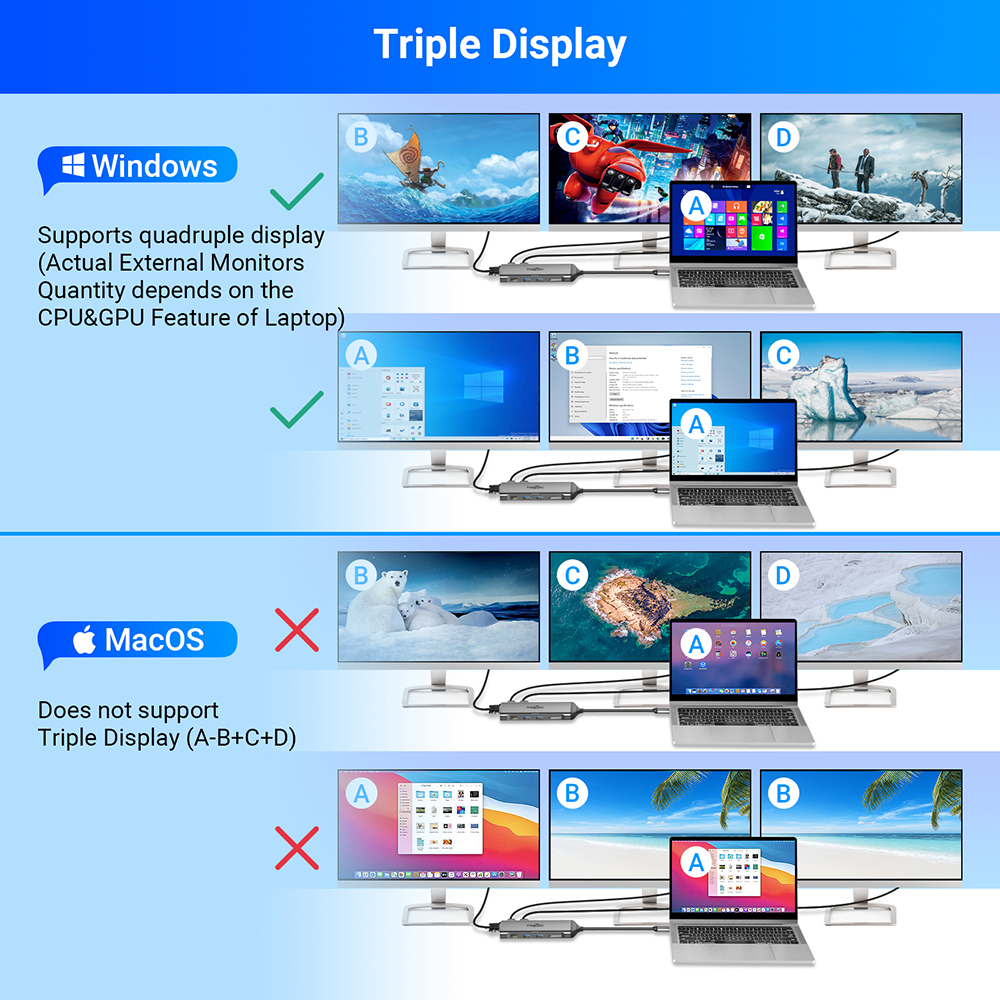

MagBac USB C Hub with Dual HDMI Ports to Extend Your Laptop (Mac or Windows OS)——Triple Display
Dual HD 4K (HDMI) Extended Displays (4K@30Hz total) Use any two ports of HDMI or VGA.

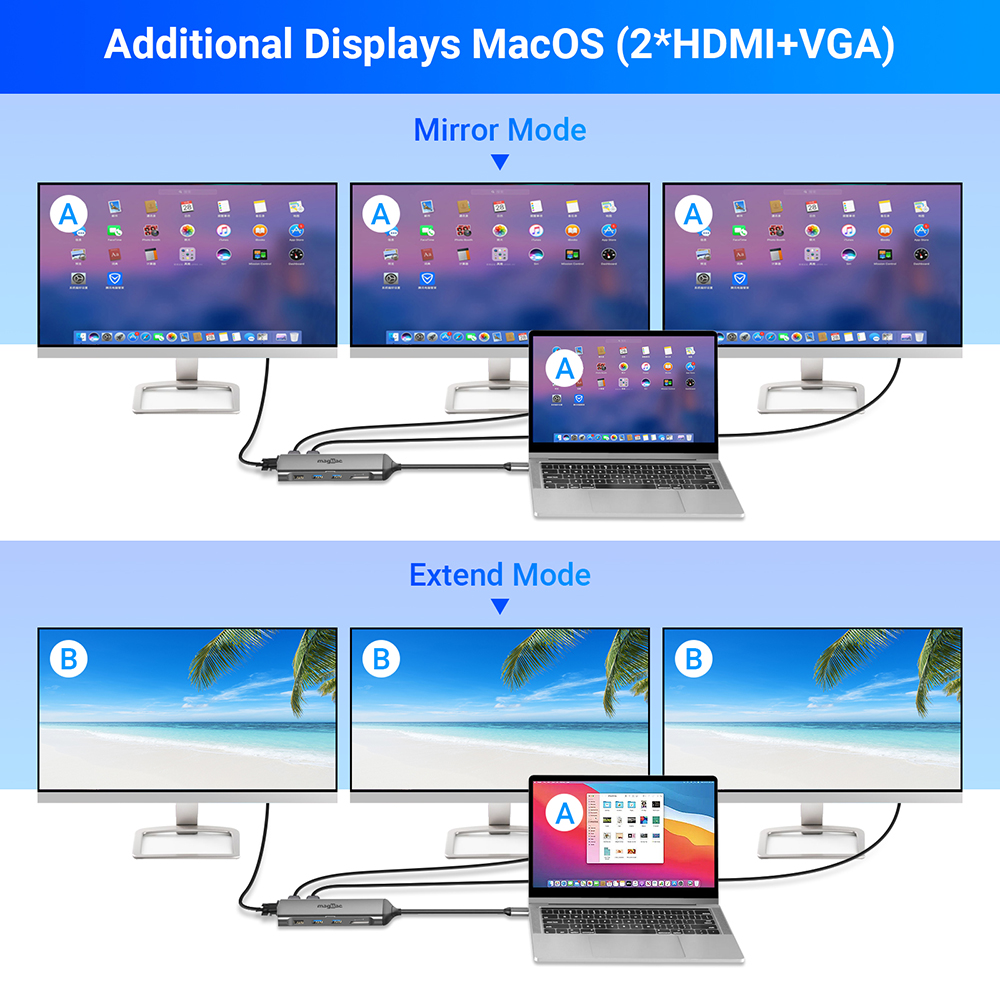

Please Noted: only Mirror Mode workable for MacOS due to it's system limitation.
For dual monitors extend mode display, please make sure your host laptop system supports displayport video output function.

Portable for meeting and business travel

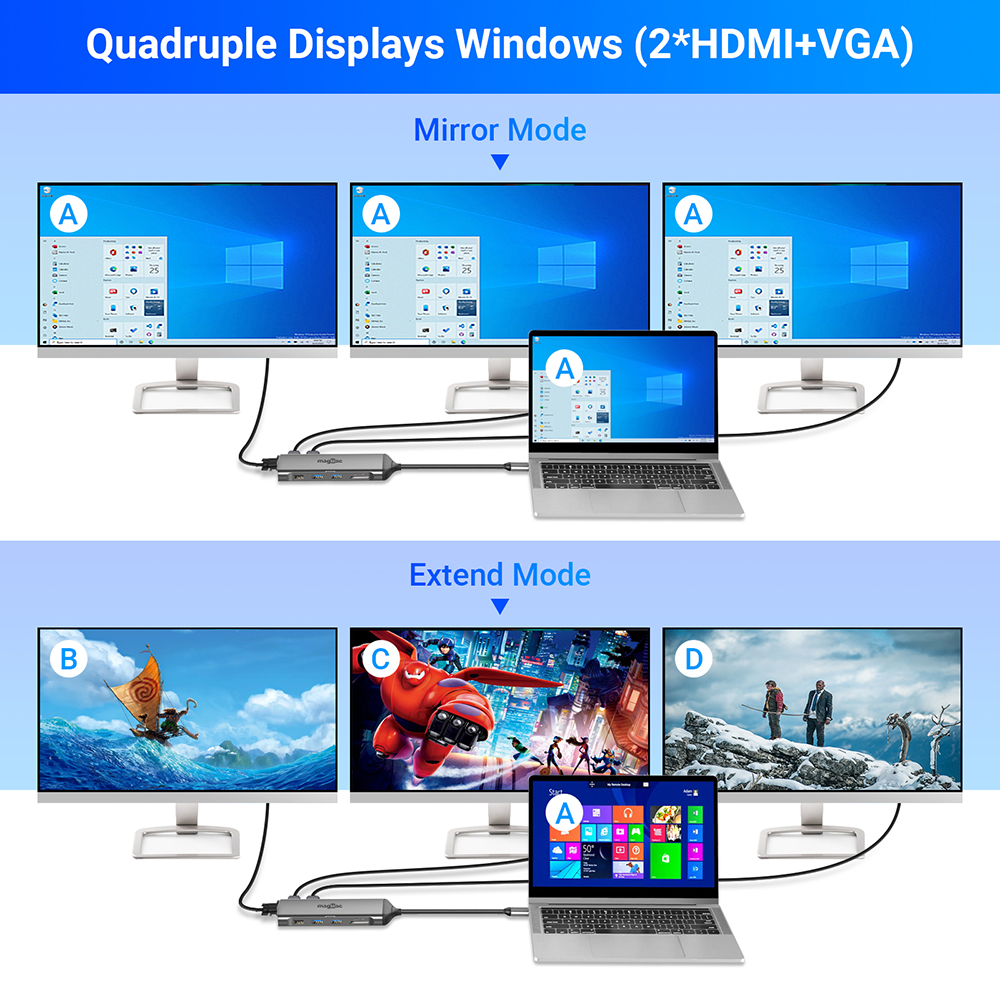

For Windows OS laptop:
Due to the limitation of the GPU function of the host laptop, any combination of output via HDMI / VGA interface can only support a single monitor with a resolution of up to 4K/30Hz or each of two monitor combinations up to 2K/60Hz (VGA only supports 1080P resolution instead of 4K) resolution; if two external monitors are connected, the information display mode of all display screens has three ways, for example A-A+A or A-B+B or A-B+C (A is the host laptop computer, B and C are external display devices)

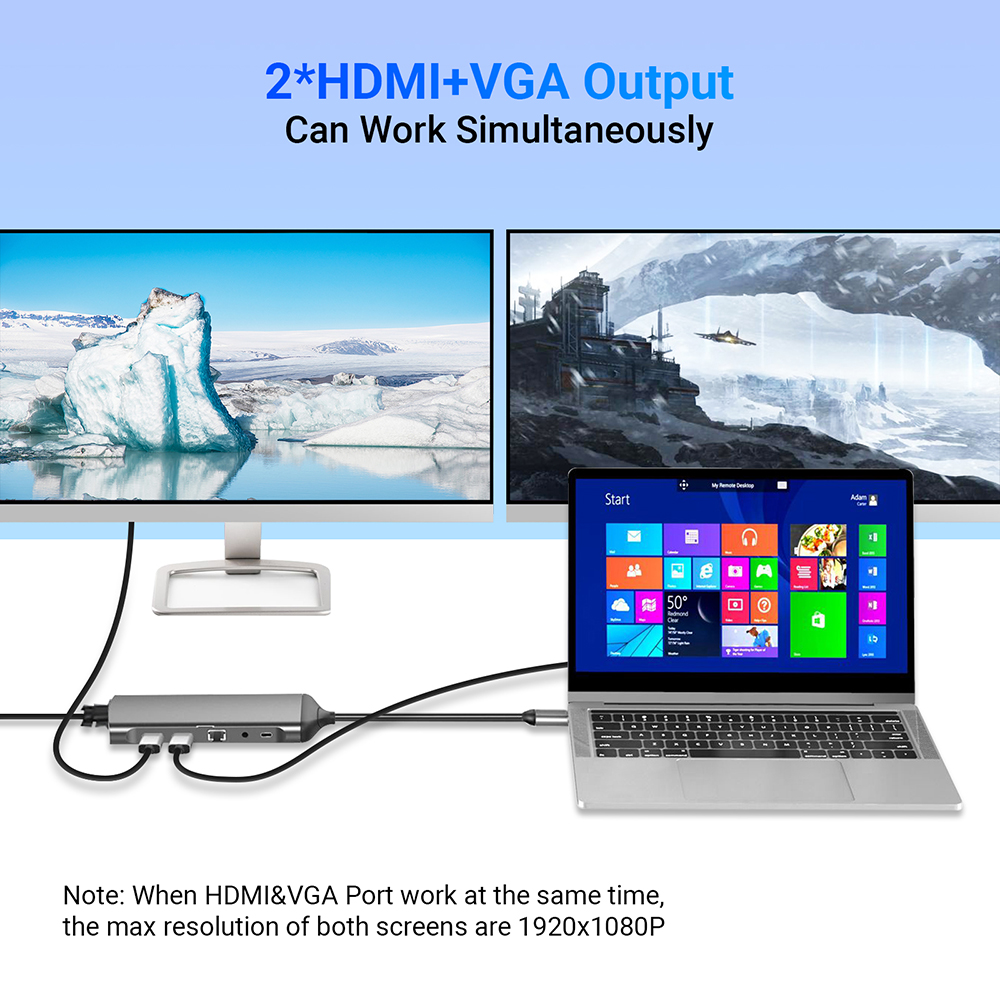

The exact resolution for any two port output combination like:
HDMI + HDMI: Resolution total up to 4K@30Hz or 2K@60Hz for each monitor
HDMI + VGA: Resolution total up to 4K@30Hz or 2K@60Hz for each monitor

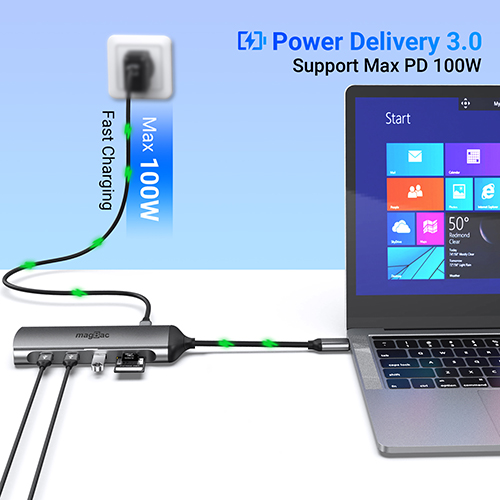

PD 3.0 supports MAX 100W power delivery

USB C port can provide power to your laptop and dock.
Not included an adapter, please buy an at lease 45W adapter to connect if needed.

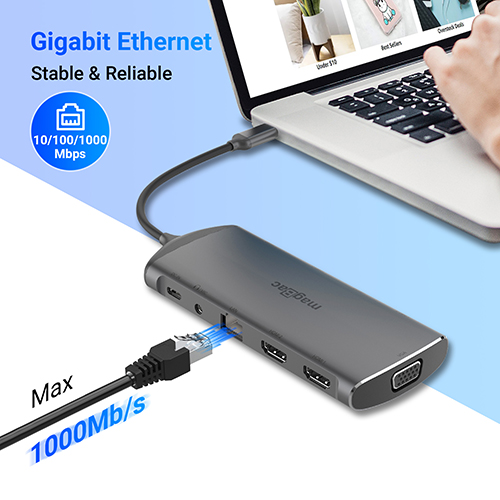

Super Speed Internet

With the built-in Gigabit Ethernet port, you will enjoy the flying speed of the video watching or data transferring.
Better & strong performance experience comparing with the WI-FI.

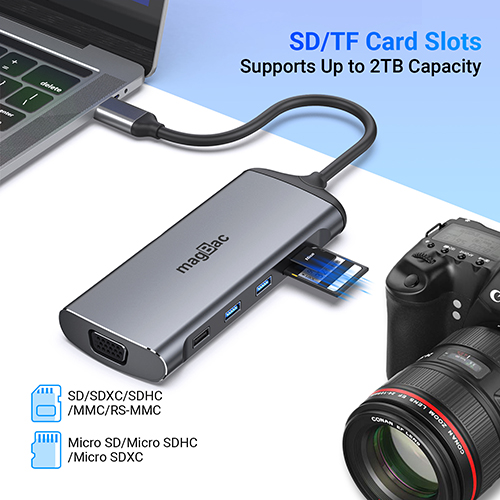

Big Capacity SD/TF Card Slot

Standard SD/TF reader slots let you share or modify your pictures / MP3 / 4 / 3GP movies, and great partner for your smartphone storage card.
Max storage memory capacity supports up to 2TB.
Do whatever you want!

Tech Specs

Product name: USB3.1 Type-C Hub / Docking Station / Port replicator / adapter ( 11 in 1 )
Model number: DS-P01S
Ports: 2*USB3.0+USB2.0+RJ45+2*HDMI+VGA+SD/TF+Typec+Audio/MIC
Color: Space Gray
Dimension: 15.4*5.4*17 cm
Weight: 102g
USB-C: DP charging Up to 87W :20V/4.35A,Max 100W, data transmission
USB 3.0: 5V/2A, 5Gbps, downward compatible USB 2.0, 1.0
HDMI 1.4: 4K @ 30Hz
VGA: 2K @ 60Hz
Ethernet Speed: 1000Mbps
3.5mm Jack: Audio / Mic
MST ( Multi-Stream Transport ): MST extend mode 2 further monitors if PC main board supports
Cable length: PVC 20cm
Compatible requirement: Windows XP/7/8/10, Mac OS 9.X/10.X,OS X EI Capitan and above,
2015 & later Chromebook OS,Linux CentOS 7 and above,Android 5.x Tablet or Smartphone etc.
Support devices ( partial ): Apple Macbook 12''15,16,17,18, MacBook Air, Pro, Google Chromebook pixel 2015, Dell XPS 13 15, HP Spectre, x360, Envy 13t, Elite X2, Asus Zenbook 3, Razer blade Stealth 18, Lenovo yoga 720, C930, 920, Huawei Matebook X,E, Samsung Galaxy book, Note 9 S9 S8 Plus, Note 8 and all full-featured type-c ported laptops/devices
