12-IN-1 USB C HUB Docking Station

(DS-P02S)

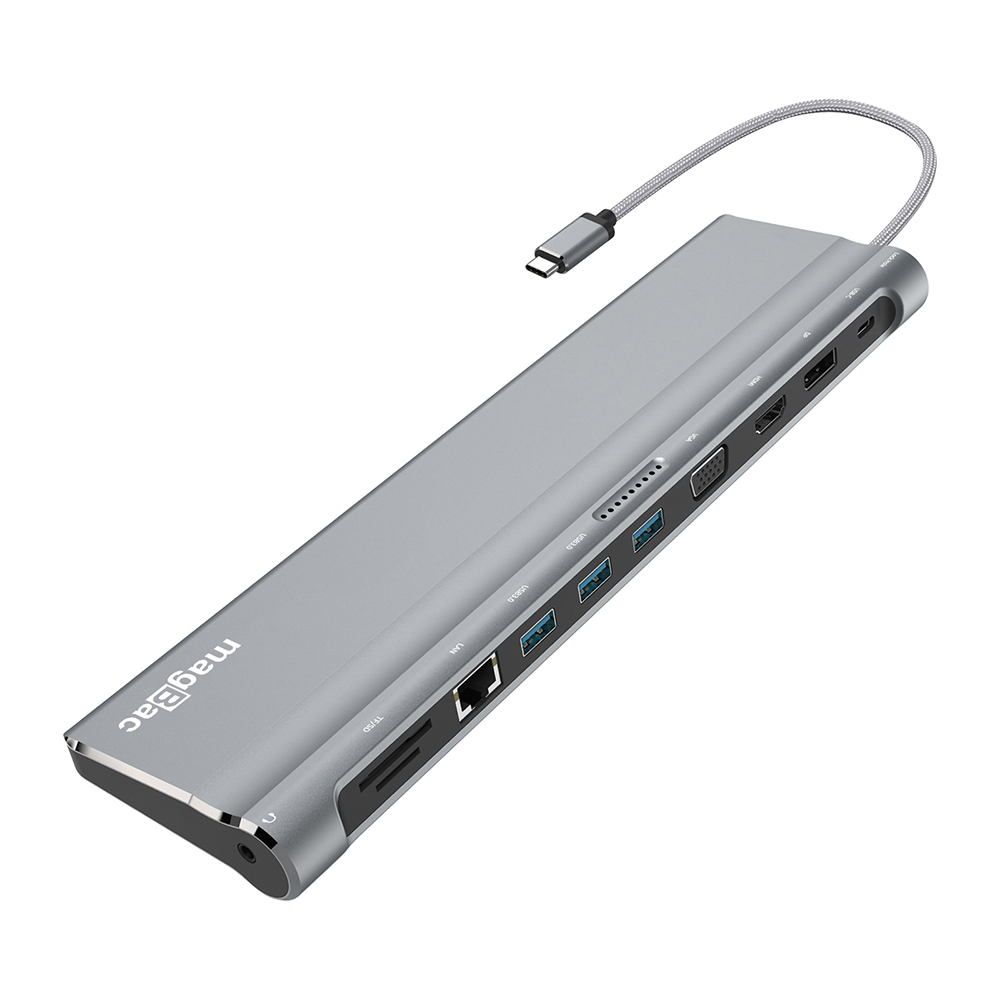

12-IN-1 USB C Docking Station (DS-P02S)

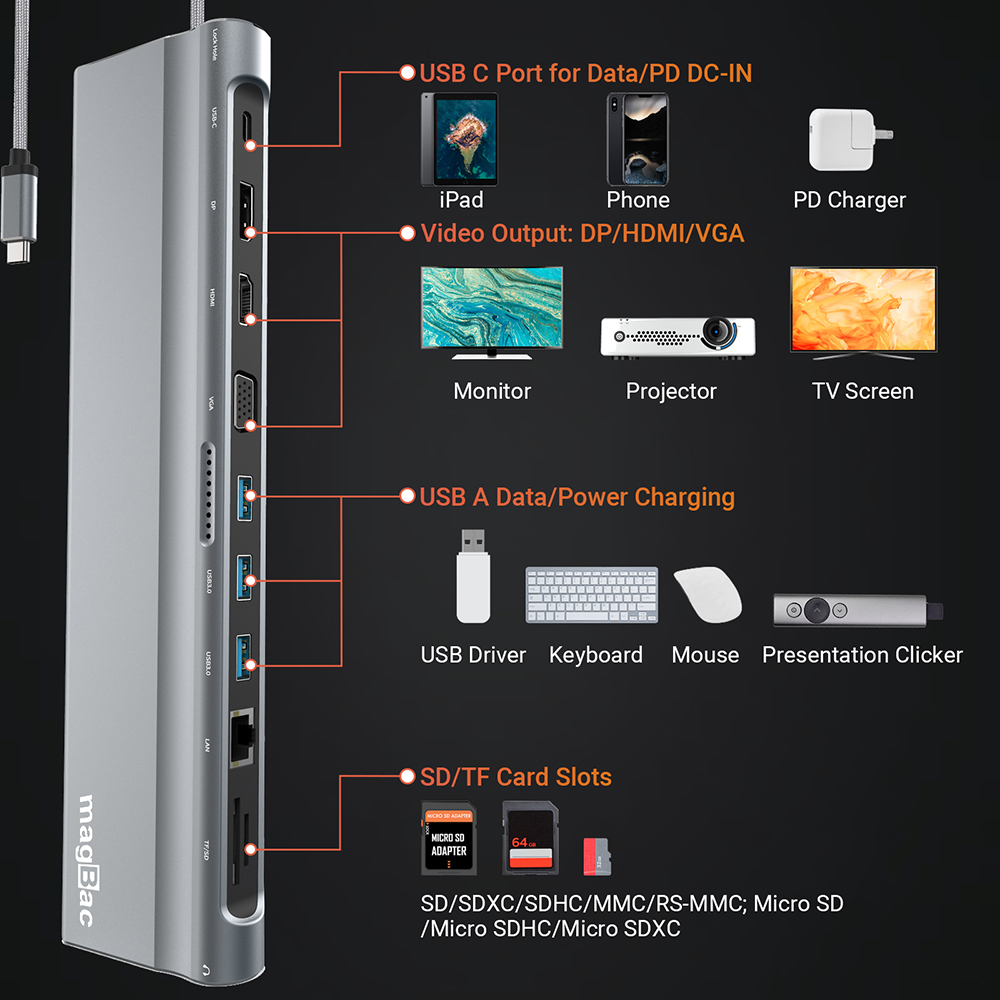

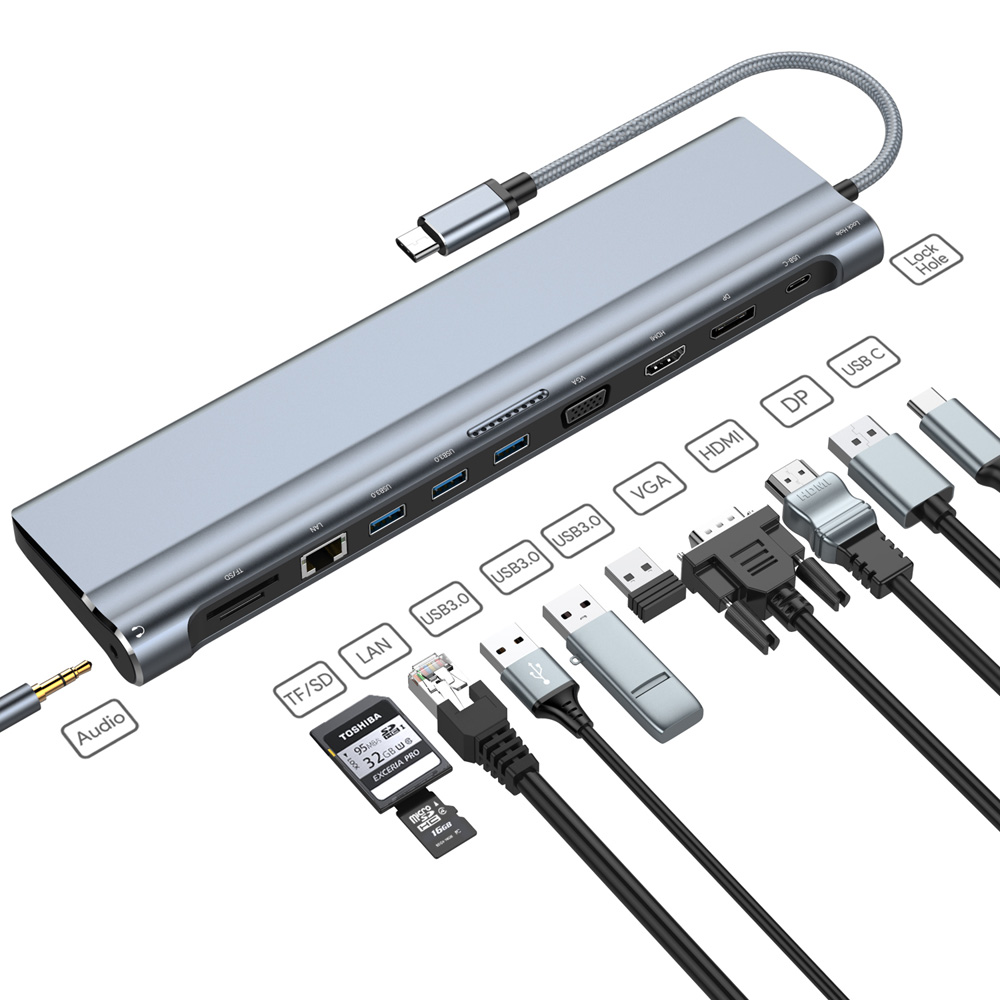

Interface Overview:

1 * HDMI support max 4K@30Hz video output

1 * DP support max 4K@30Hz video output

1 * VGA support max 2K@60Hz video output

3 * USB-A data transmission speed can up to 5Gbps

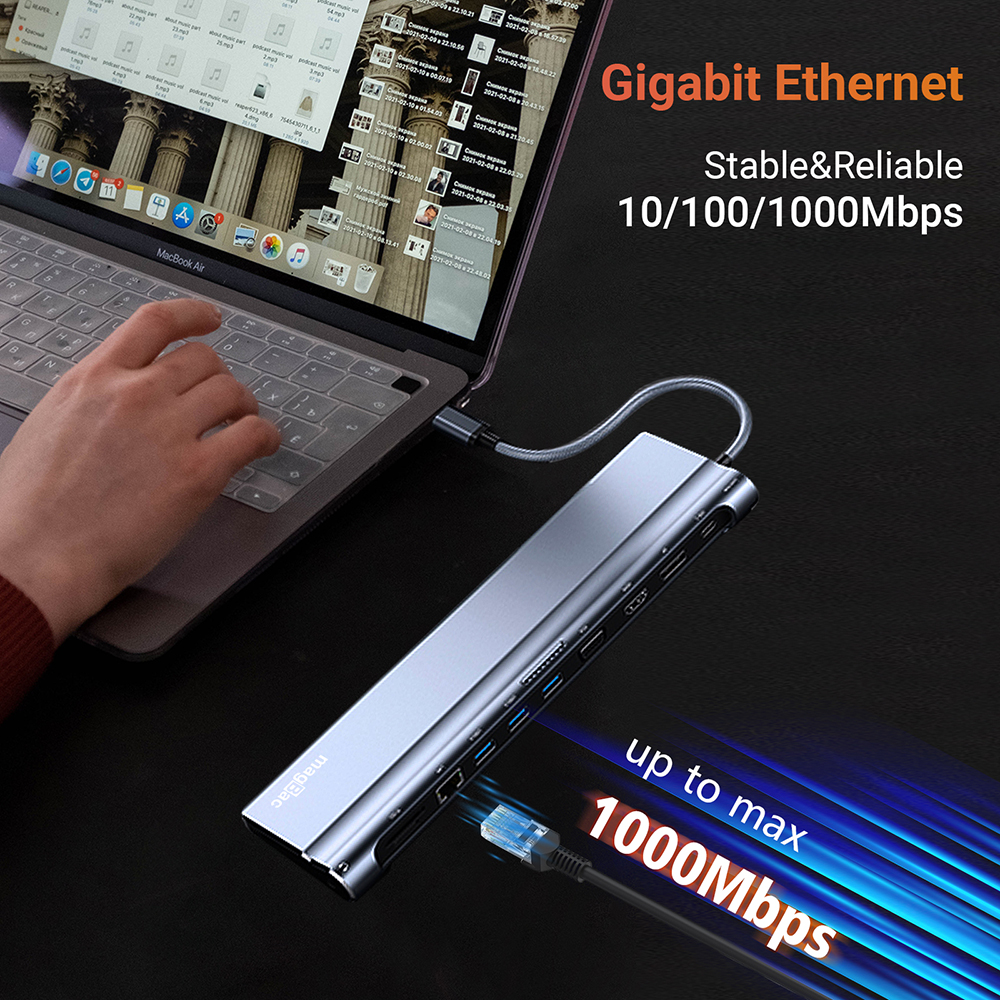

1 * RJ45 port support 10/100/1000Mbps bandwidth

1 * SD and Micro SD compliant with version 3.0, support to access memory

1 * Audio port supports both microphone and headphone

1 * USB-C female port supported devices, power rate 20V/5A (100W)

1 * security lock hole protect your laptop at public area

9 LED indicators will be lit when the corresponding port is connected, except Audio and Ethernet port

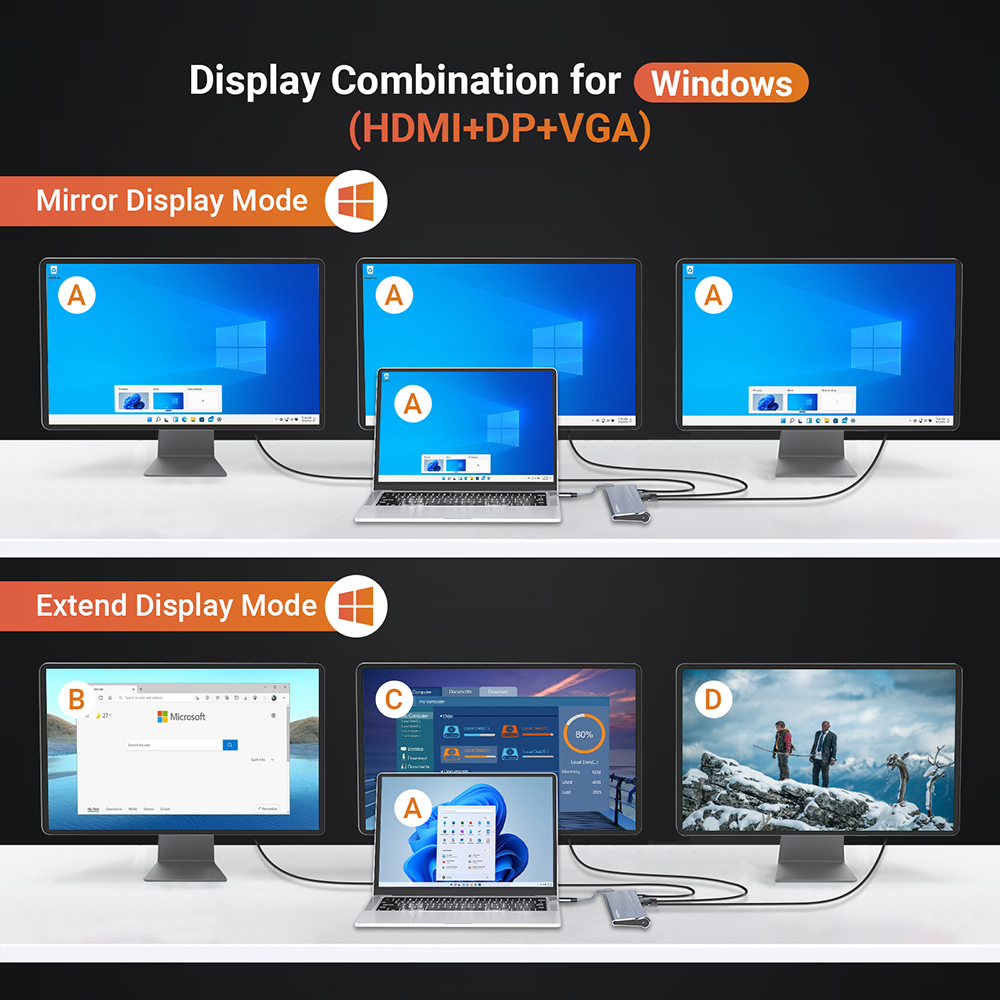

For Windows OS laptop:
Due to the limitation of the GPU function of the host laptop, any combination of output via HDMI / DP / VGA interface can only support a single monitor with a resolution of up to 4K/30Hz or each of two monitor combinations up to 2K/60Hz (VGA only supports 1080P resolution instead of 4K) resolution; if two external monitors are connected, the information display mode of all display screens has three ways, for example A-A+A or A-B+B or A-B+C (A is the host laptop computer, B and C are external display devices)
The exact resolution for any two port output combination like:
HDMI + DP: Resolution total up to 4K@30Hz or 2K@60Hz for each monitor
HDMI + VGA: Resolution total up to 4K@30Hz or 2K@60Hz for each monitor
DP + VGA: Resolution total up to 4K@30Hz or dual 2K@60Hz for each monitor

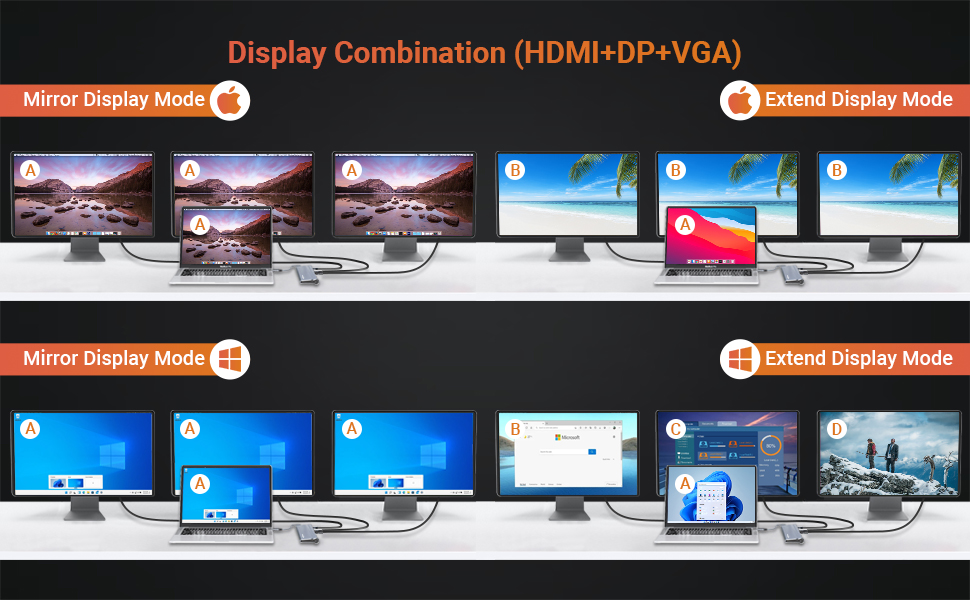

For Mac OS laptop:
Mirror mode: Support to connect three external monitors at the same time, the docking station can extend 3 display (the host laptop display is not included), but all the display show the same information (A-A+A+A).
Extend mode: Support to connect three external monitors at the same time,the docking station can extend 3 display with same information, but host laptop display can show information different from the other 3 external display (A-B+B+B).

System Requirements:
· Windows: Windows 7, 8, 8.1, 10 (32/64bit)
· MAC: Mac OS 10.11, 12 above
· All full-featured USB3.1 GEN1/USB3.1 GEN2 computer (Host computer's Type C port should support Power Delivery and Display-port Output feature).

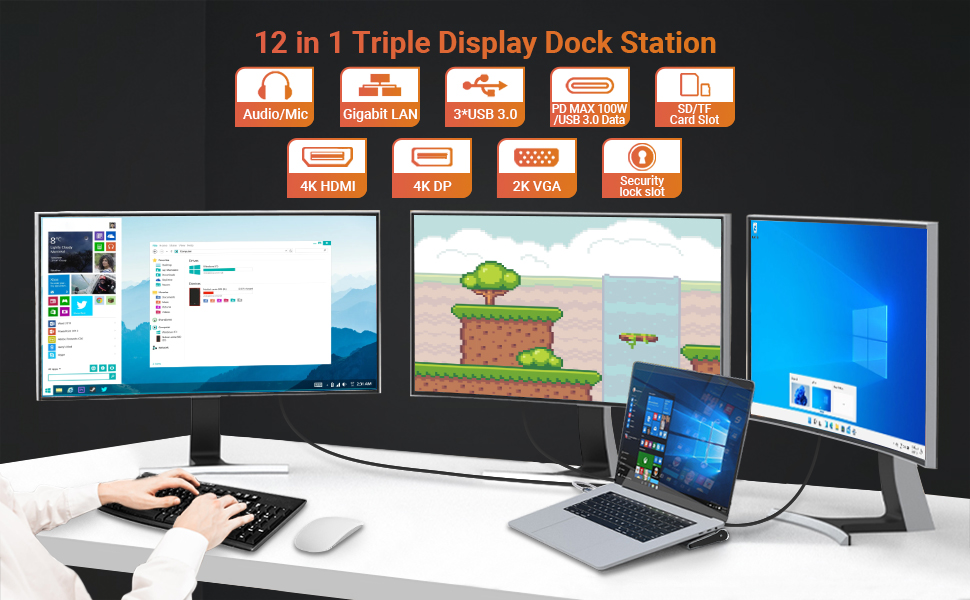

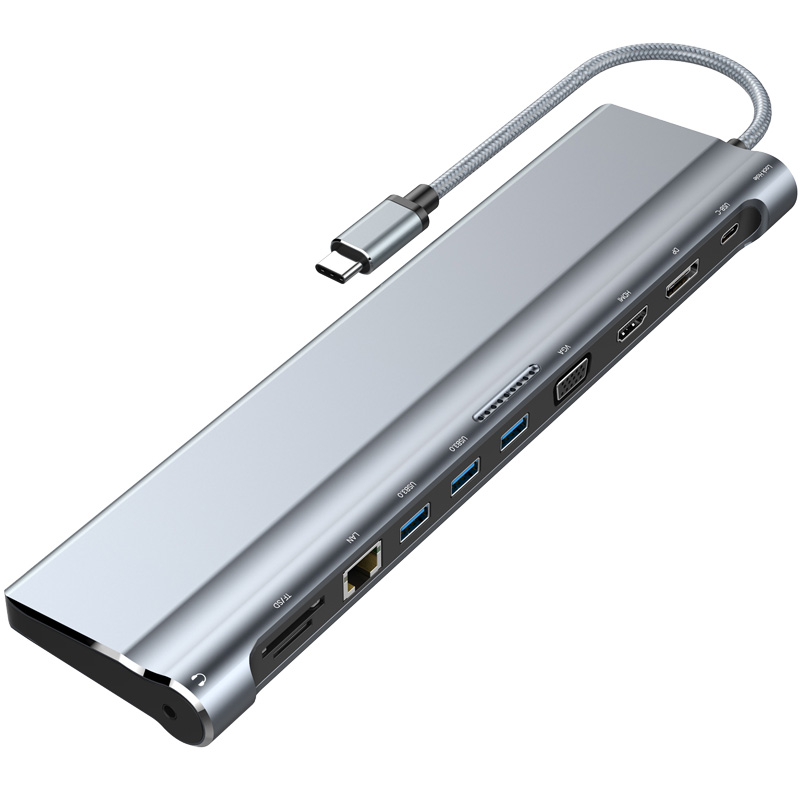

Docking Station 12 IN 1

With this USB C docking station, you can easily extend your laptop from one type c / thunderbolt 3/4 port into 12 ports, you will get 4K HDMI, VGA, DP, 3*USB 3.0 ports, USB C Power Delivery Port (Up to 100W), Gigabit Ethernet (1Gbps), SD/Micro SD card readers and 3.5mm Mic/Audio.
Magbac can provide the highest quality products and service. Please feel free to let us know about your concerns.

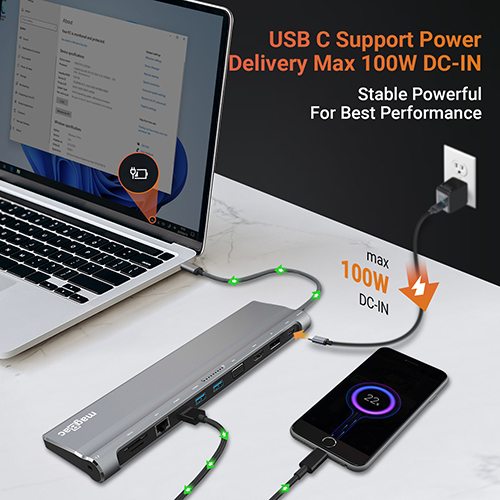

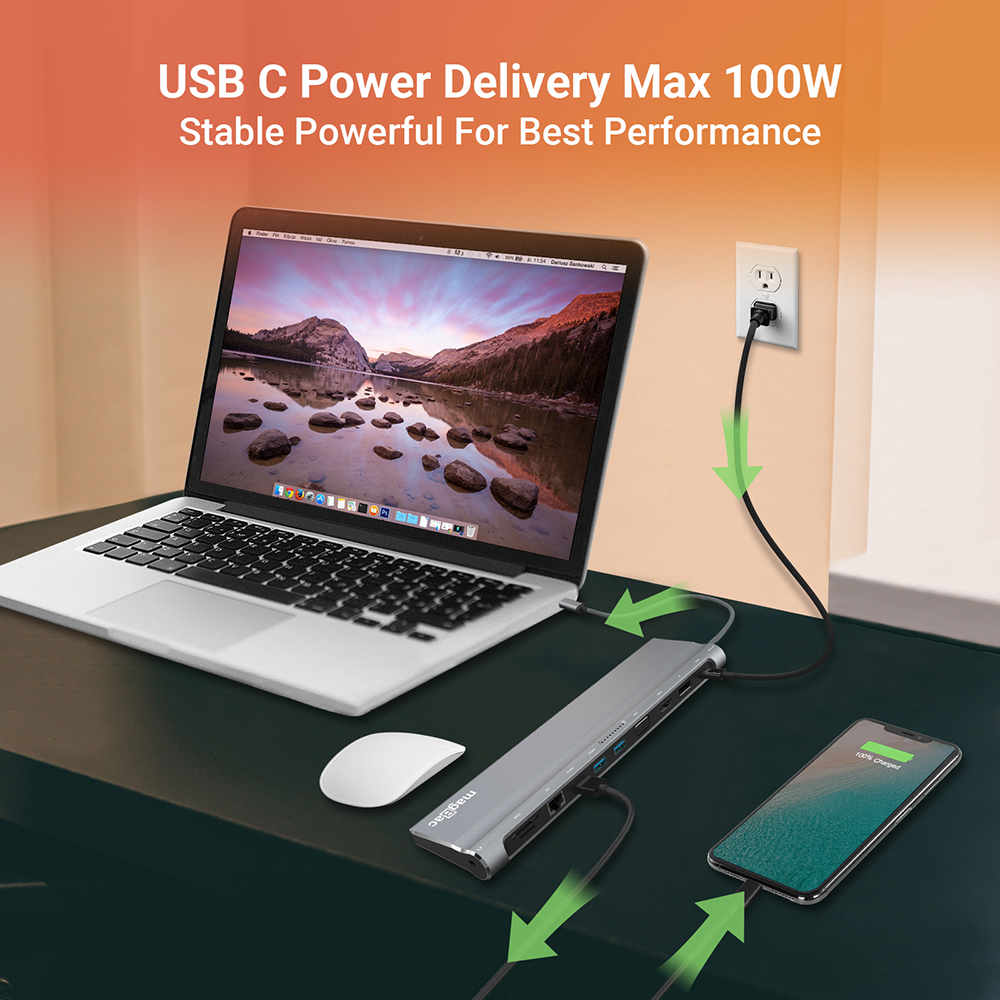

Up to 100W USB C PD Port

USB C power delivery port support max 100W DC-IN, which with stable powerful, keep charger for docking and laptop.
Please noted: that you need to purchase the extra USB C PD power adapter.

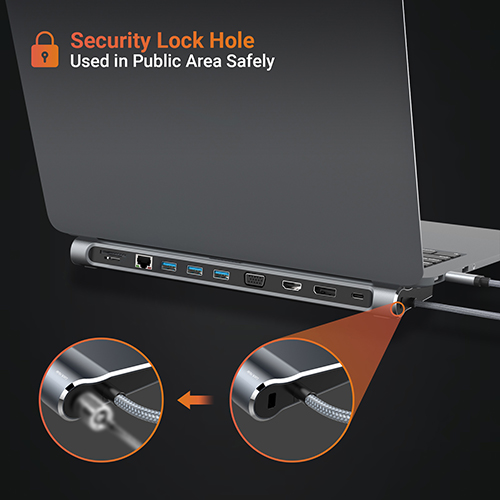

Protect your laptop

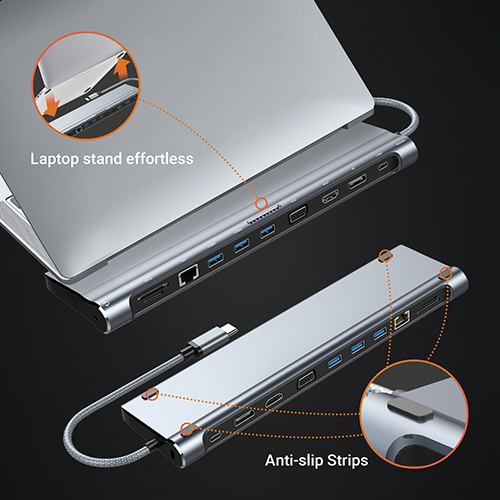

This docking station dual monitor with a security lock hole, which used in pubile area safely, high-quality stylish aluminum enclosure, 3 ways of heat dissipation, soft silicone non-slip pad, LED indictors, Nylon woven cable.

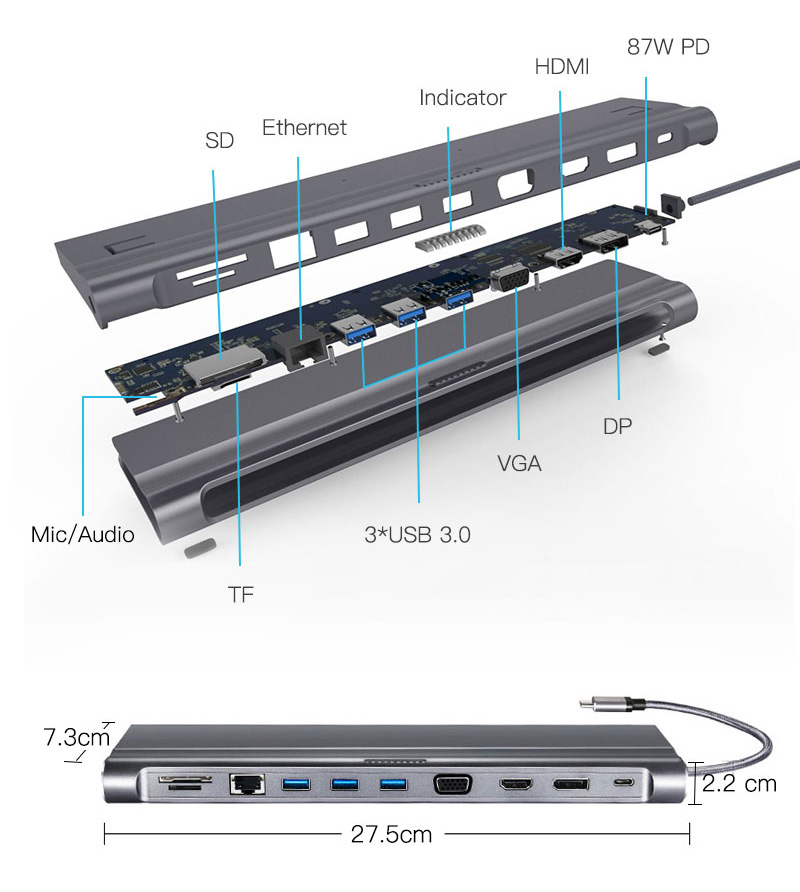

Tech Specs

Product name:  USB3.1 Type-C Hub / Docking Station / Port replicator / adapter ( 12 in 1 )
Model number:  DS-P02S
Ports: 2*USB3.0+1*USB2.0+SD/TF+RJ45+DP+HDMI+VGA+Type C(PD)+Audio/Mic+Lock Docking Station
Color: Space Gray
Dimension:  27.5*7.3*2.2 cm
Weight: 313g
USB-C: not only DP charging 20V/4.3A, 87W, but also data transmission

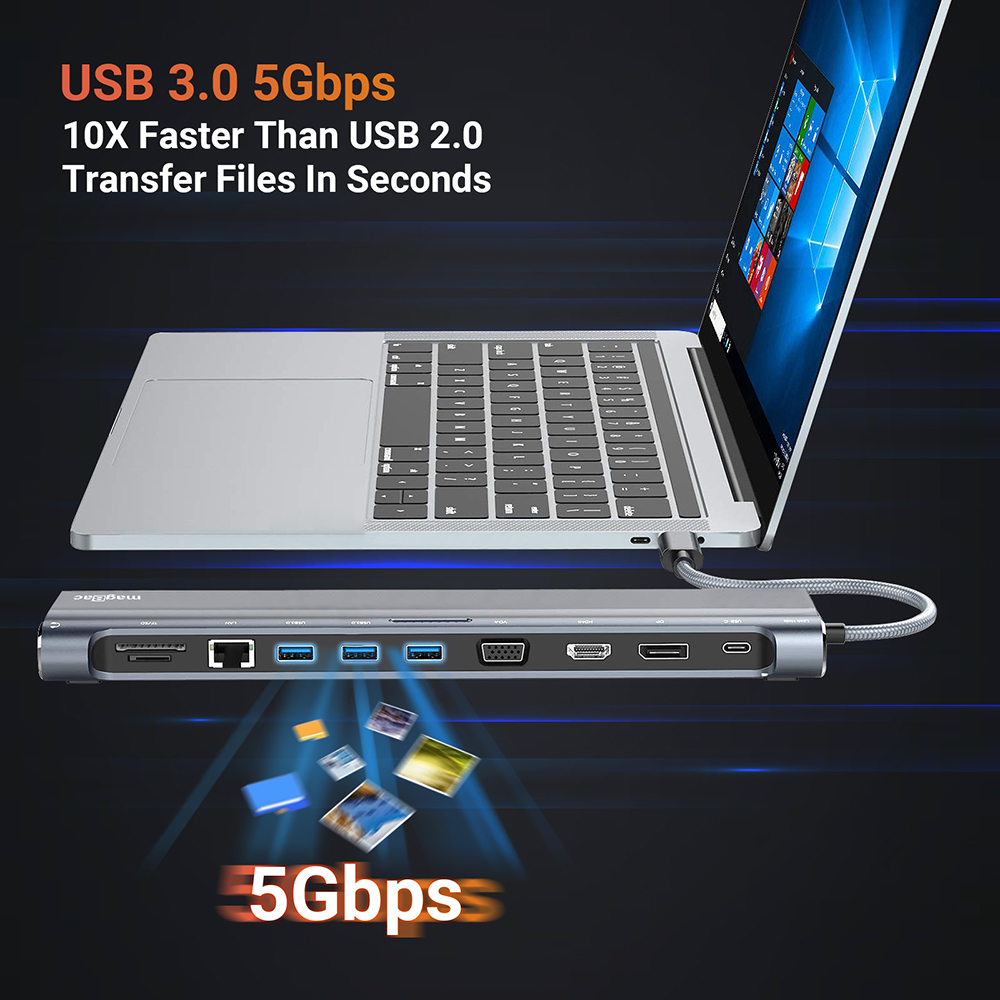

USB 3.0: 5V/2A, 5Gbps, downward compatible USB 2.0, 1.0
HDMI 1.4: 4K @ 30Hz
DP 1.2: 4K @ 30Hz
VGA: 2K @ 60Hz
Ethernet Speed: 1000Mbps
3.5mm Jack: Audio /  Mic
MST ( Multi-Stream Transport ): MST extend 2 monitors from the host if PC main board supports
DP+VGA, DP+HDMI, HDMI+VGA Either two of the video ports support 4K total resolution
Cable length: 20cm TPE+Nylon braided cable
LED indicators: 9 Individual LED indicator lits when the corresponding port is connected
heat dissipate hole: 3 ways heat  dissipation and dustproof
Security lock hole: public use
Compatible requirement: Windows XP/7/8/10, Mac OS 9.X/10.X,OS X EI Capitan and above,
2015 & later Chromebook OS,Linux CentOS 7 and above,Android 5.x Tablet or Smartphone etc.
Support devices ( partial ): Apple Macbook 12''15,16,17,18, MacBook Air, Pro, Google Chromebook pixel 2015, Dell XPS 13 15, HP Spectre, x360, Envy 13t, Elite X2, Asus Zenbook 3, Razer blade Stealth 18, Lenovo yoga 720, C930, 920, Huawei Matebook X,E, Samsung Galaxy book, Note 9 S9 S8 Plus, Note 8 and all full-featured type-c ported laptops
