14-IN-1 USB C HUB Docking Station

(DS-P03S)

14-IN-1 USB C Docking Station (DS-P03S)

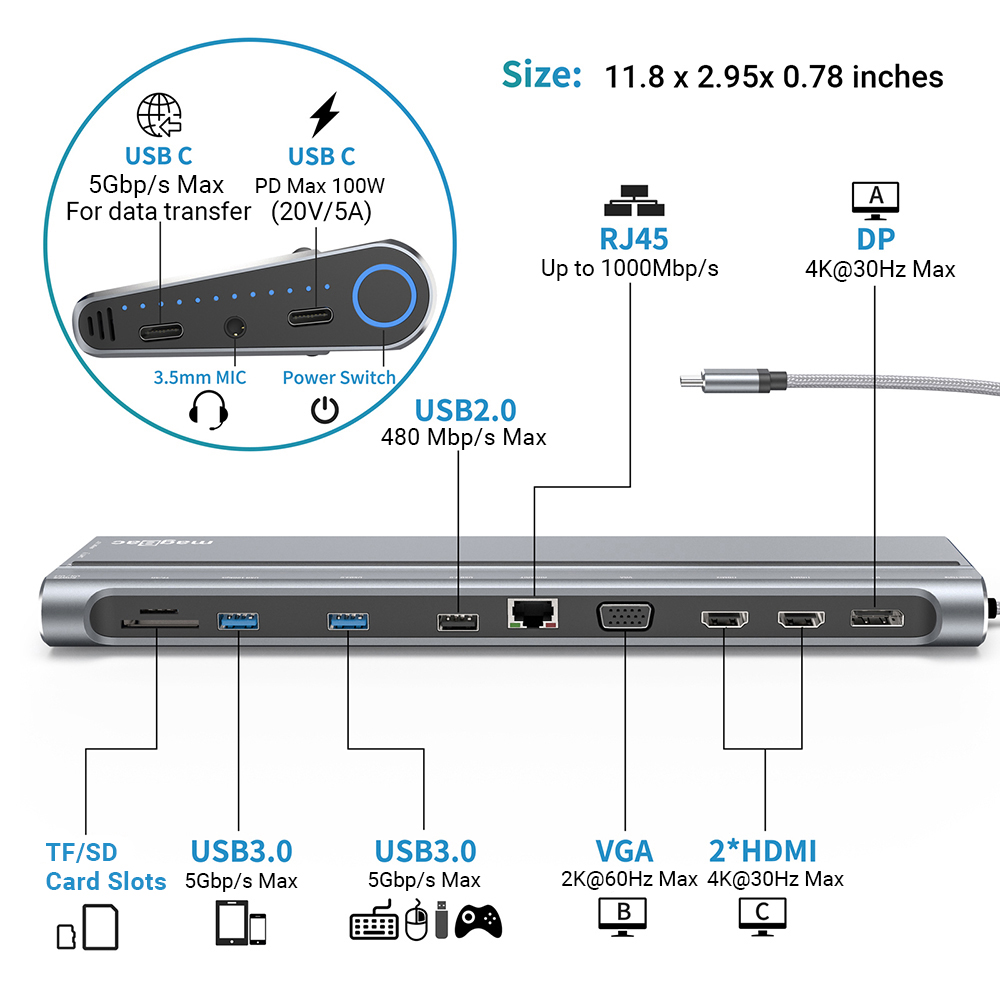

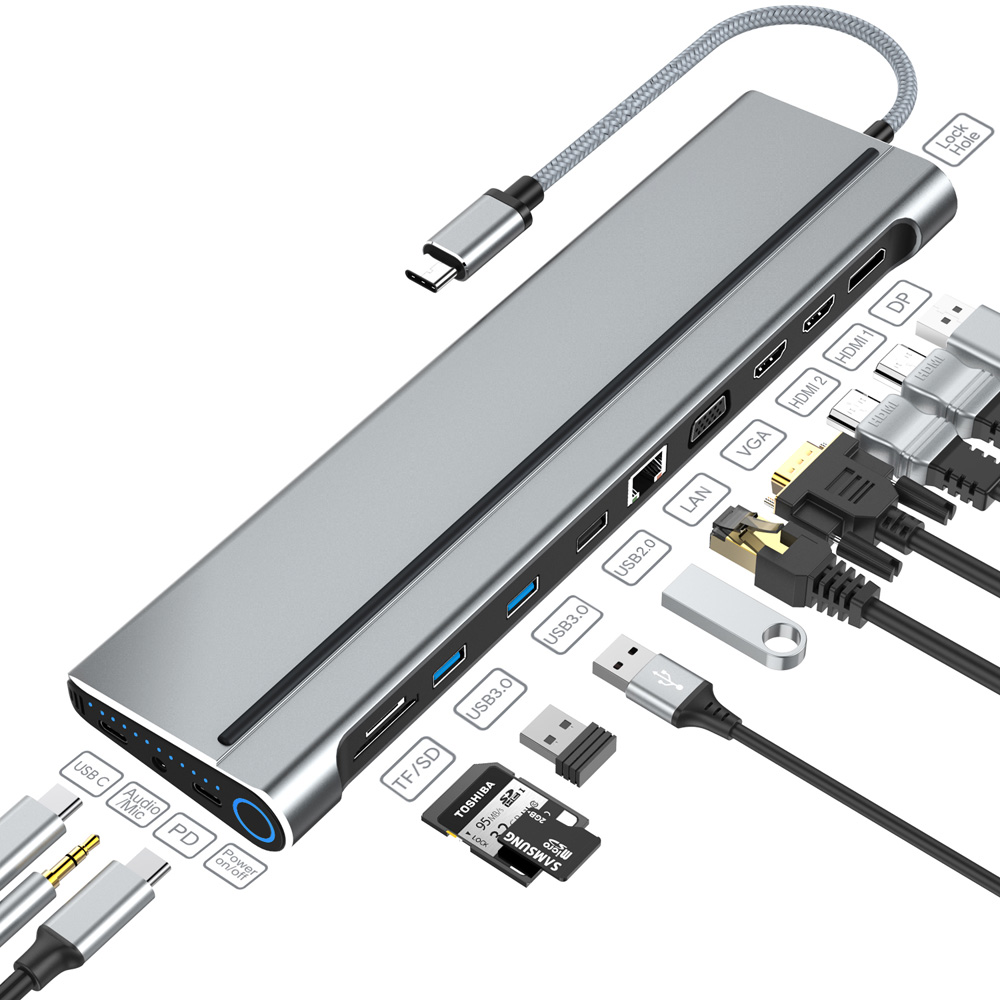

Interface Overview:

This USB C Docking Station connects to any computer which have a Thunderbolt 3/4 or full-featured USB C and provides up to 87W power delivery charging

2 * HDMI support resolution up to 4K@30Hz

1 * DisplayPort support resolution up to 4K@30Hz

1 * VGA support resolution up to 1920x1080P@60Hz

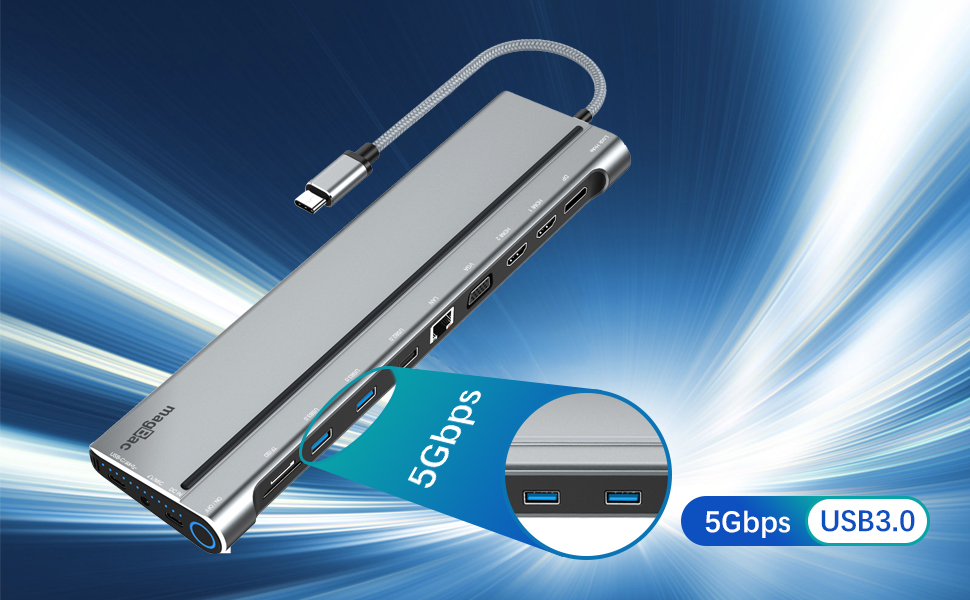

3 * USB A support 7.5W (5V@1.5A), data transmission speed can up to 5Gbps

1 * Audio port supports both microphone and headphone,can up to 48KHz/24bit

1 * USB C female port, one for charging Thunderbolt 3/4 and other USB-C devices, power rate 20V/4.3A (87W),

1 * USB C port support data transmission (USB 3.0 speed)

1 * RJ45 port support 10/100/1000Mbps bandwidth

1 * SD and Micro SD compliant with version 3.0, support to access memory

1 * security lock hole protect your laptop at public area

Power on/0ff button: save energy and enhance efficiency

Individual LED indicators will be bright to display each port working normally except Audio, VGA and Ethernet port

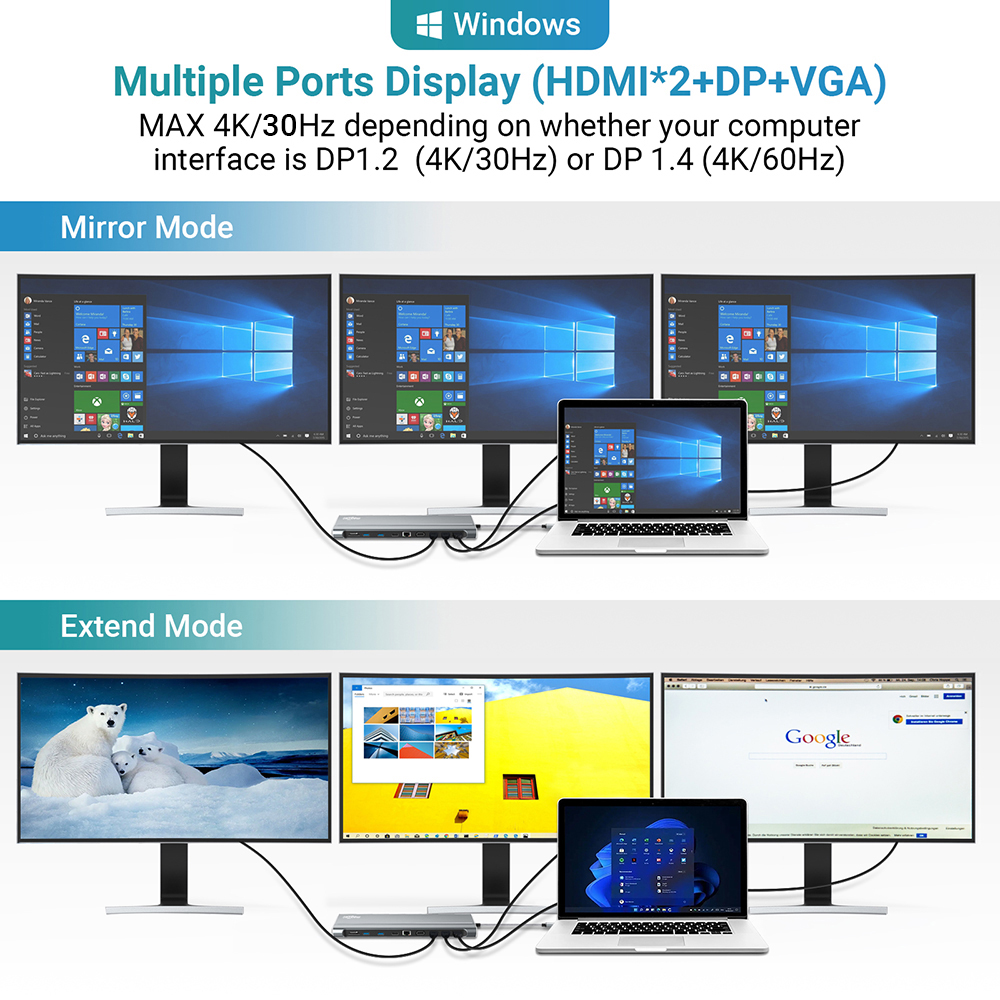

Triple Display Docking Station
This USB-C Dock support both SST & MST for Windows Laptop. Dual 4K HDMI resolution up to 3840*2160@30Hz (Backward compatibility with 1080p@60Hz). The protocol of Laptop’s USB C interface should support DP1.2/1.4, the max TOTAL (Sum) resolution of 2/3 monitors and host laptop screen is 4K/30Hz.

Dual Monitor Dock Station
4K HDMI Output resolution up to 3840*2160@30Hz Max, DisplayPort supports Max 3840*2160@30Hz resolution, VAG 1920*1080@60Hz.

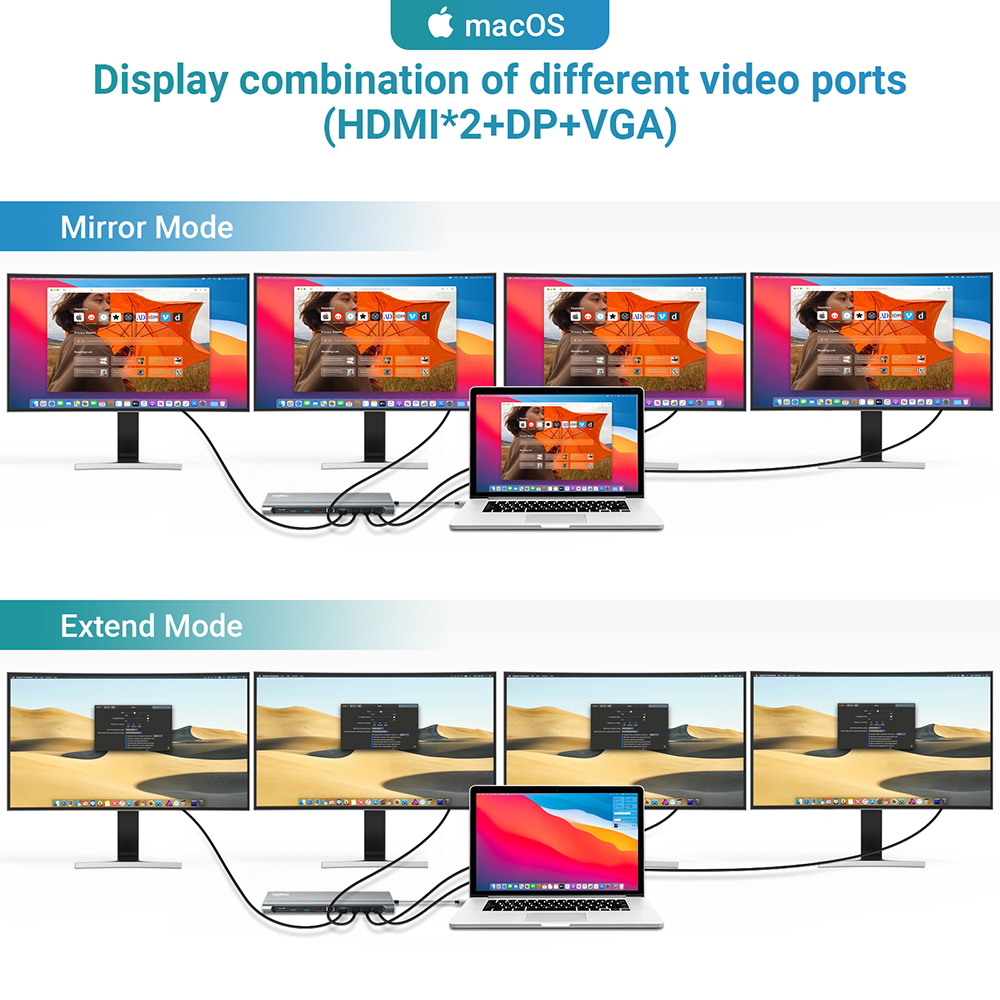

Please Noted: For Mac OS laptop, supports three external monitors only in mirror display mode, laptop screen and monitors display like A-B+B+B or A-A+A+A mode.

Compatible Devices (not a complete list):
Compatible with HP laptops: HP EliteBook 850 G6 / HP EliteBook 755 G5 / HP Probook X360 435 G7 / HP EliteBook 840 G5-G8 / HP Elitebook 845 G7 / HP Probook 450 G8 / HP EliteBook 850 G7-G8.
Compatible with Dell Laptops: Dell Latitude 7320 / Dell Latitude 5521 / Dell Latitude 5510 / Dell Latitude 7400 / Dell Latitude 5310 / Dell Latitude 5511 / Dell Latitude 7420 / Dell Latitude 7490 / Dell Latitude 5380 / Dell Latitude 5390, Dell XPS 13 / 17.
Compatible with Apple Laptops: MacBook Pro 2021 / 2020 / 2019 / 2018 / 2017, MacBook Air 2020 / 2019 / 2018 (Mirror Mode Only).
Compatible with Microsoft Laptop: Surface Pro7 / Surface Go 2 / Surface Pro 8 / Surface Laptop 4 / Surface Laptop 3 / Surface Book2.
Compatible with Huawei: Huawei MateBook X Pro 2021 / Huawei Matebook D15 / Huawei Matebook D16 / Honor Magicbook Pro / P40 Pro/P40 / P30 Pro / P30 / Mate20 Pro / Mate30 / Mate30Pro.
Compatible with Samsung: Galaxy Tab S8 / S7 / S5e / Galaxy Tab S4 / Samsung Galaxy S10+ / S10 / S9+ / S9 / S8+ / S8 Plus.

Not compatible list (not a complete list):
Not compatible with Dell Precision / Dell Inspiron 15 3593 / Dell Inspiron 15 7000 (7573).
Not compatible with Surface Go / Surface Pro / Surface Pro 6 / Surface Book 3Not compatible with Honor MagicBook 14/Huawei Matebook D14.
Not compatible with Lenovo Ideapad Series / ASUS VivoBook / HP Zbook / HP Pavillion / HP EliteBook / Acer Series and other old version USB-C laptops.

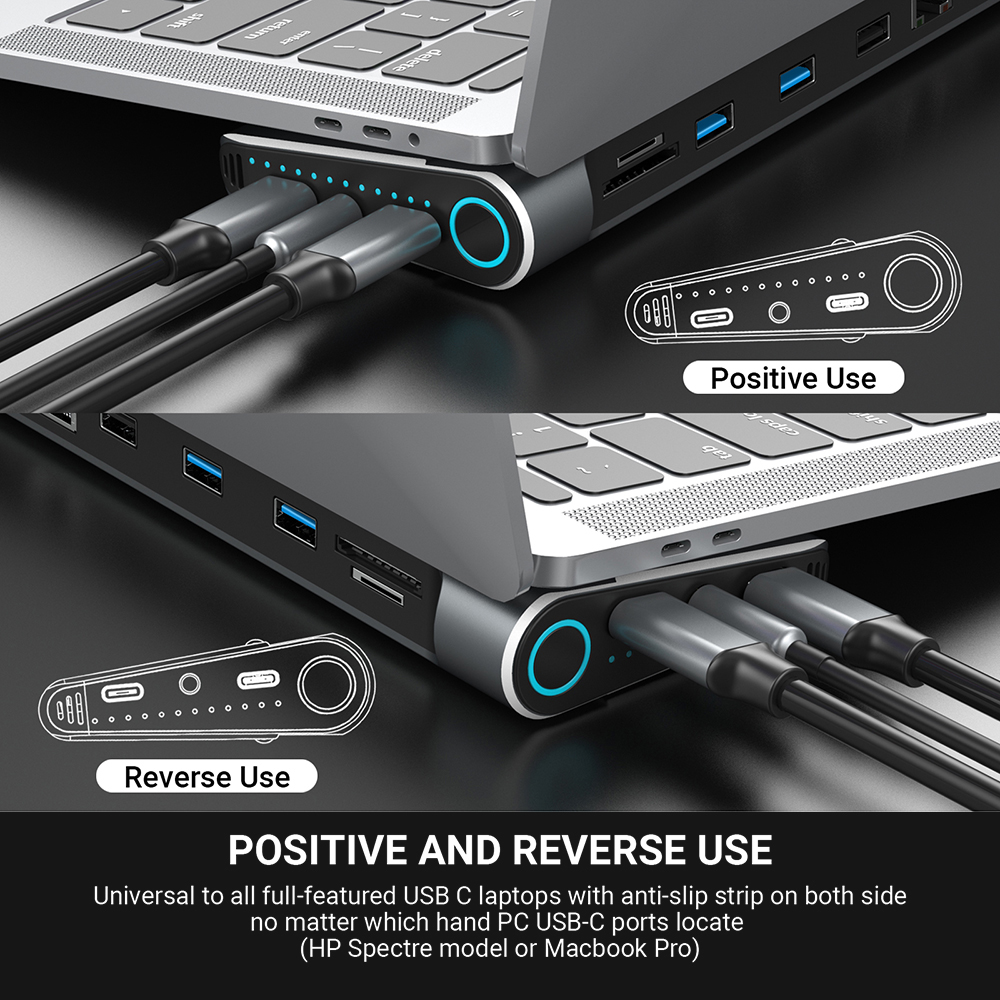

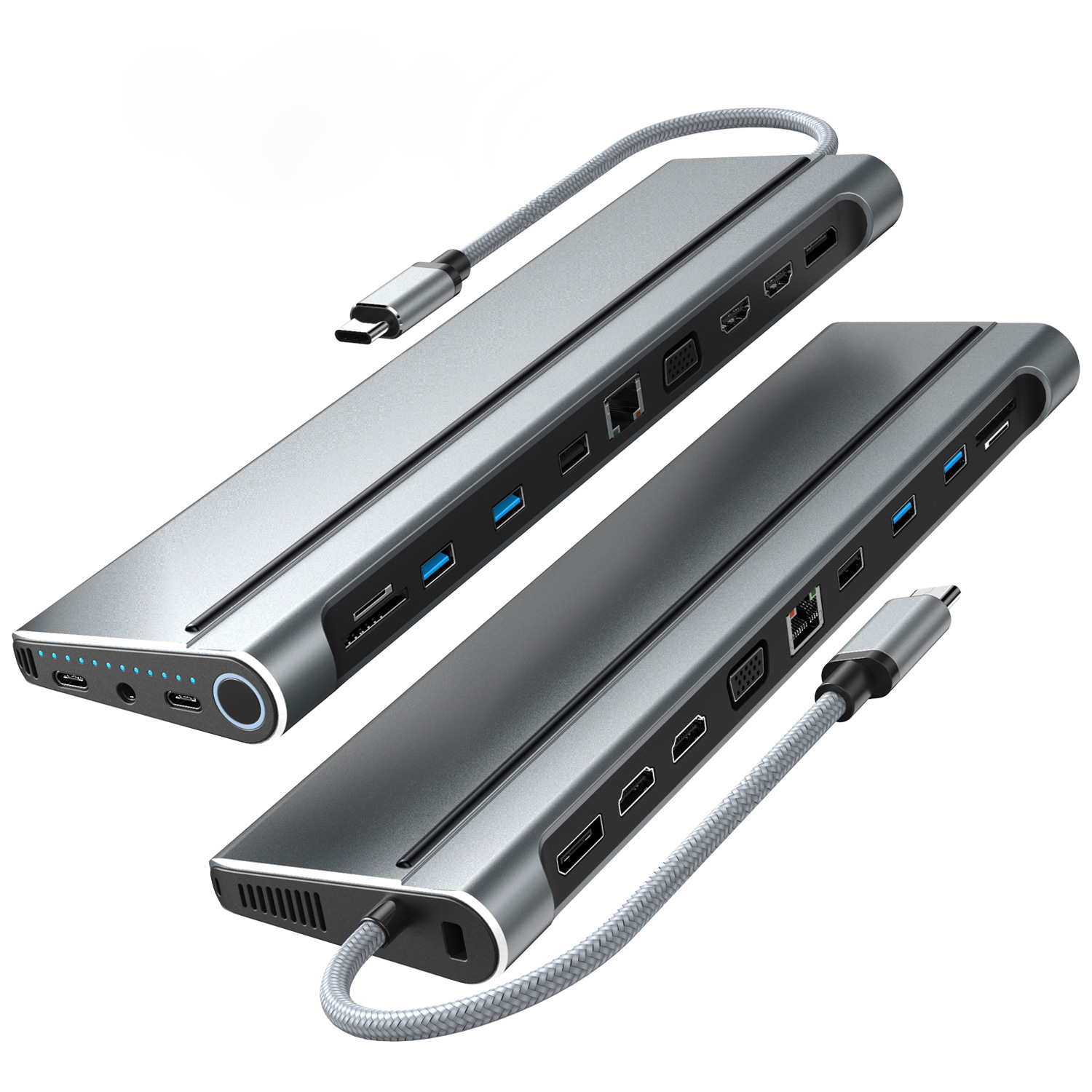

Universal USB C Dongle As A Laptop Stand

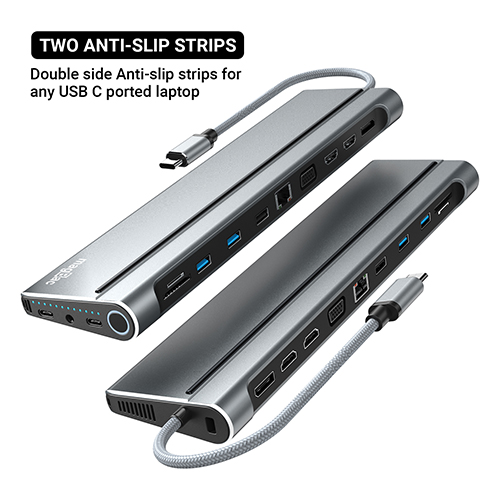

Double Anti-slip strips design for table top, can also be used as a laptop stand;
Whether the USB C port is on the left or right of the laptop, it is convenient to connect.
Safety lock hole design ensures safety.

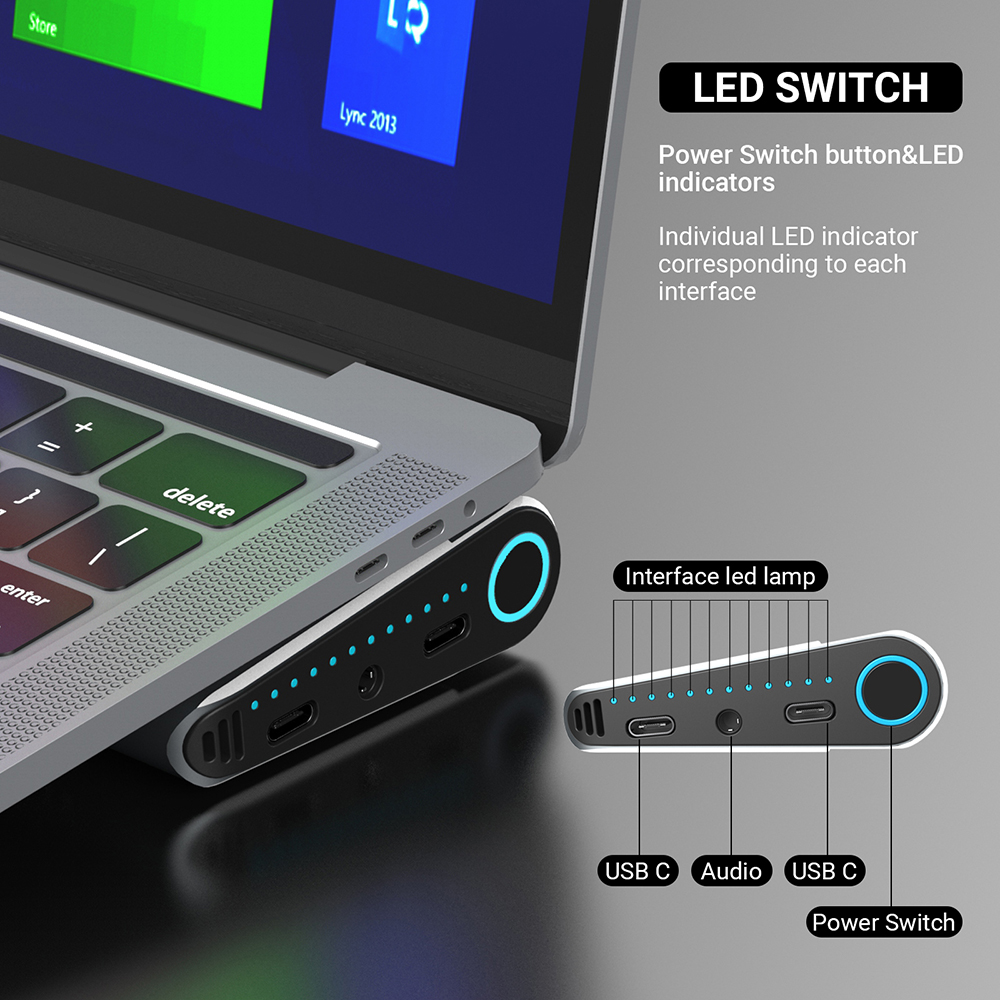

14 in 1 Docking Station with ON/OFF Button

This USB C HUB has a Power ON/OFF button which supports to save power consumption and ensure a stable operation.
14 port can use simultaneously.

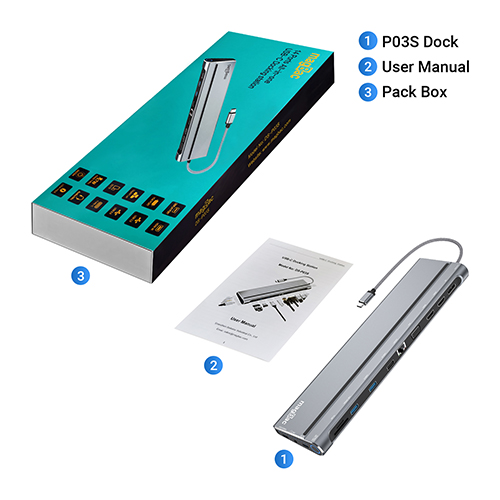

Package list

1.docking station
2.User Manual
3.Color box





Tech Specs

Ports: 2*USB3.0+1*USB2.0+SD/TF+RJ45+DP+2*HDMI+VGA+2*Type C(PD+Data)+Audio/Mic+security Lock interfaces
Product name: USB3.1 Type-C hub / Docking Station
Model number: DS-P03
Material: Precision milled Aluminum enclosure with plastic tray for protection and isolation
Color: Space Gray
Dimension: 30.3*7.5*2.2cm
Weight: 354g
Dual USB 3.0: 5V/2A, max 5Gbps, downward compatible USB 2.0, 1.0
DP 1.2: 4K @ 30Hz
VGA: 2K @ 60Hz
Gigabit Ethernet: 10/100/1000Mbps
3.5mm Jack: Audio / Mic  48Khz
MST ( Multi-Stream Transport ): MST extend mode 2 further monitors if PC main board supports
(Mac OS support 1 display extended )
Cable length: 20cm TPE+Nylon braided cable
LED indicators: 12 Individual LED indicators lit when the corresponding port is connected
DUAL USB-C: one for DP charging (20V/4.3A, 87W, max 100W ), the other for data transmission
Dual HDMI 1.4: 4K @ 30Hz
Anti-slip Chain: Both side, universal to all full-featured USB C laptops no matter which side Type-c port locates
( Front and back side reversible and symmetrical )
SSD : Optional Built-in Solid State Drive with cooling fan  ( support capacity 256GB  to 2TB)  for Laptop Storage Capacity Expansion
Power button available: save energy/enhance efficiency/extend product's life
heat dissipate hole: 3 ways heat dissipation and dustproof
Security lock hole: public use
Patented design applied: CN, US, EU
Compatible System: Windows XP/7/8/10, Mac OS 9.X/10.X,OS X EI Capitan and above, 2015 & later Chromebook OS,Linux CentOS 7 and above,Android 5.x Tablet or Smartphone etc.
Support devices ( partial ): Apple Macbook 12''15,16,17,18, MacBook Air, Pro, Google Chromebook pixel 2015, Dell XPS 13 15, HP Spectre, x360, Envy 13t, Elite X2, Asus Zenbook 3, Razer blade Stealth 18, Lenovo yoga 720, C930, 920, Huawei Matebook X,E, Samsung Galaxy book, Note 9 S9 S8 Plus, Note 8 and all full-featured type-c ported laptops/devices
