15-IN-1 USB C Docking Station

(DS-P06SD)

15 IN 1 Triple Display USB-C Docking Station

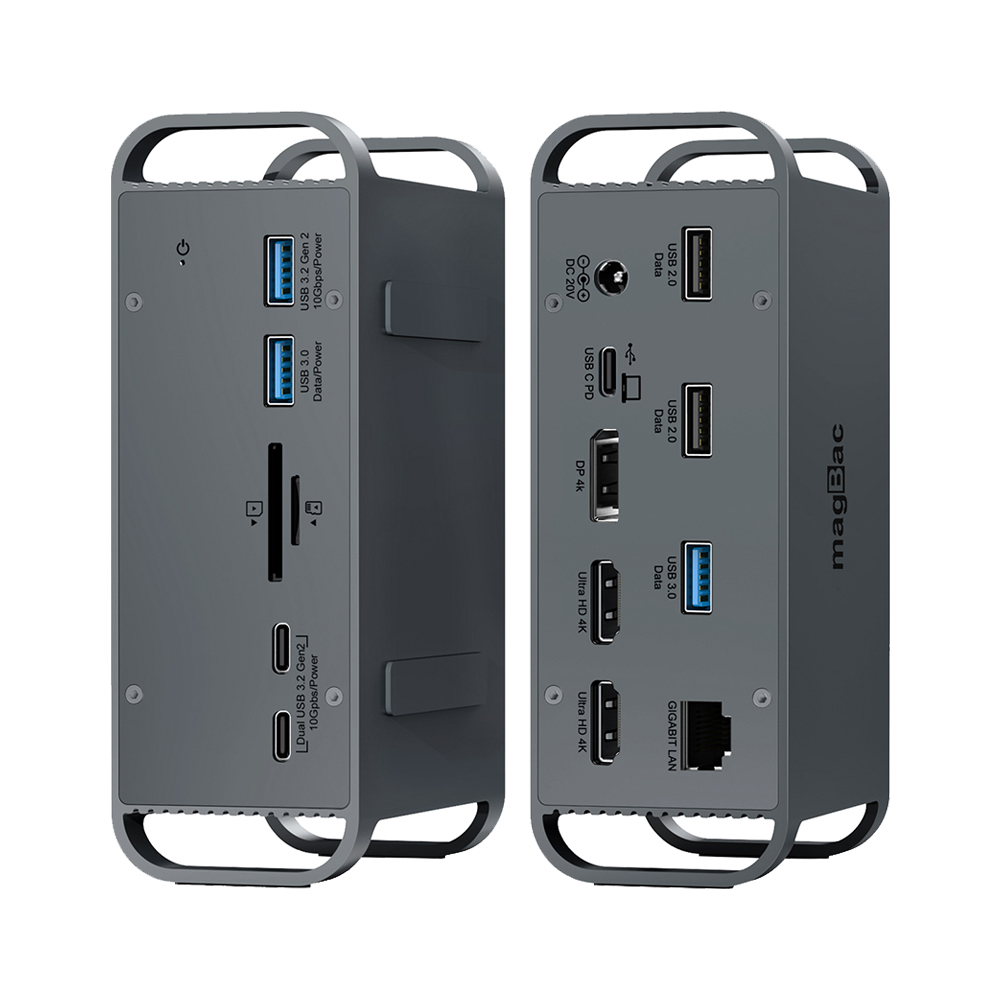

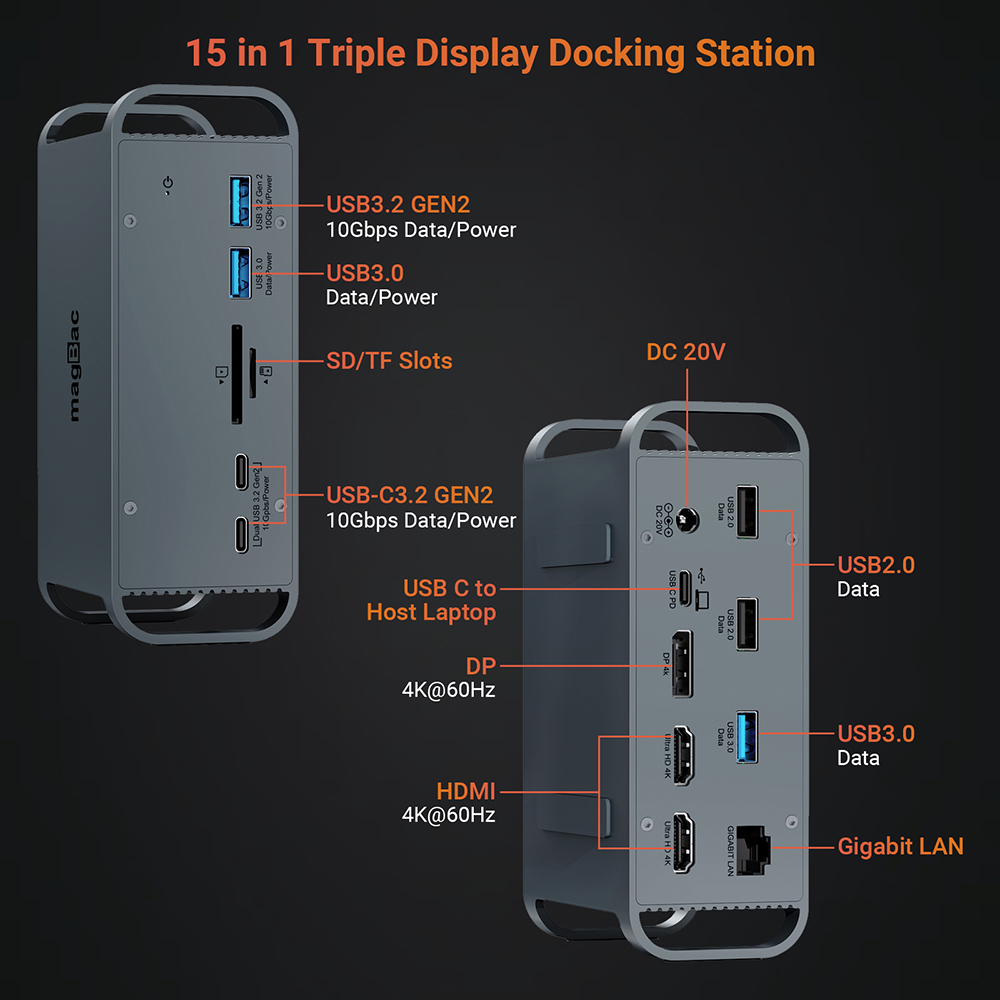

Interface Overview:

1 * USB-C female on the back panel for host laptop

2 * USB C USB 3.2 Gen2 on the face panel: 10Gbps data transmission and power charging for both ports

1 * USB 3.2 Gen2 USB A: 10Gbps data transfer and power charging

2 * USB 3.0 for data tasering

2 * USB 2.0 port for data transferring

2 * HDMI 2.0b: Support max 4K@60Hz video output

1 * DP1.4: Supports max 4K@60Hz video output

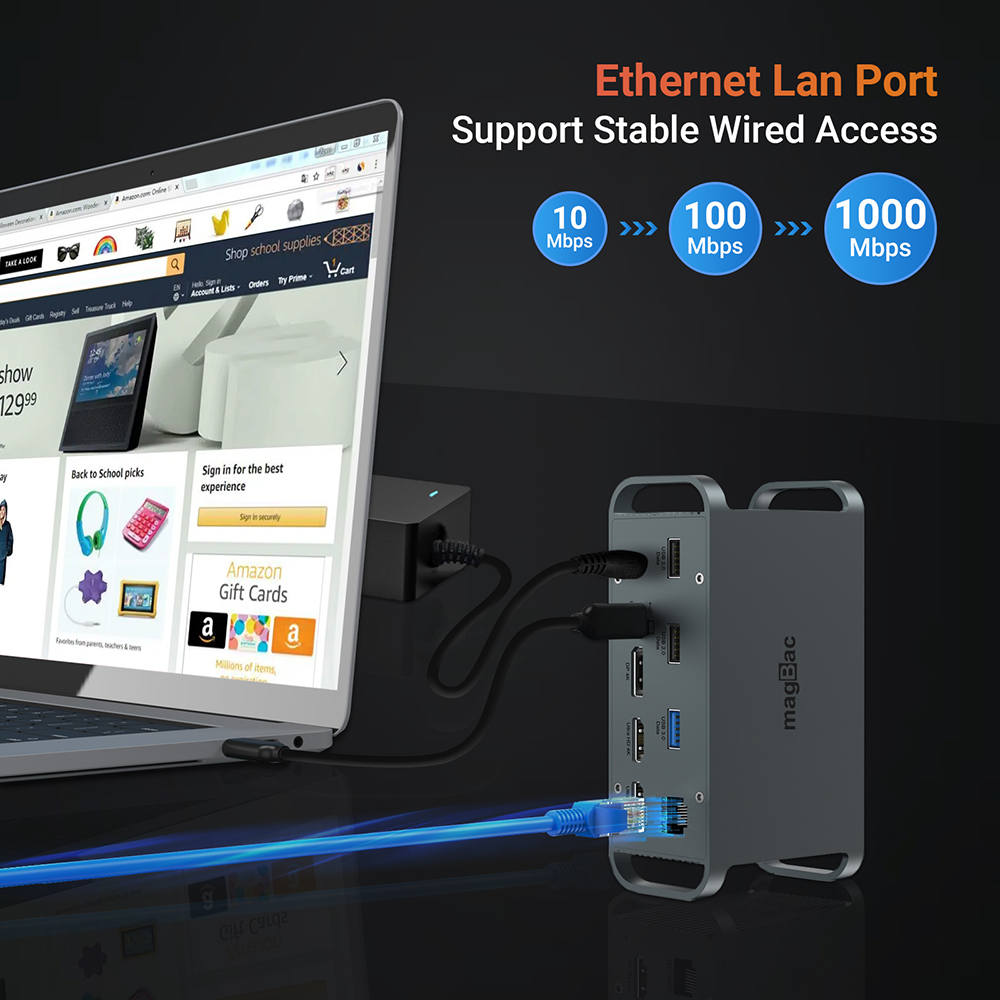

1 * Gigabit Ethernet: Supports 10/100/1000Mbps wide bandwidth

1 * SD/Micro SD card slots

1 * DC-IN Port

LED light for working status showing on the front panel

Anti-slip strips in two ways

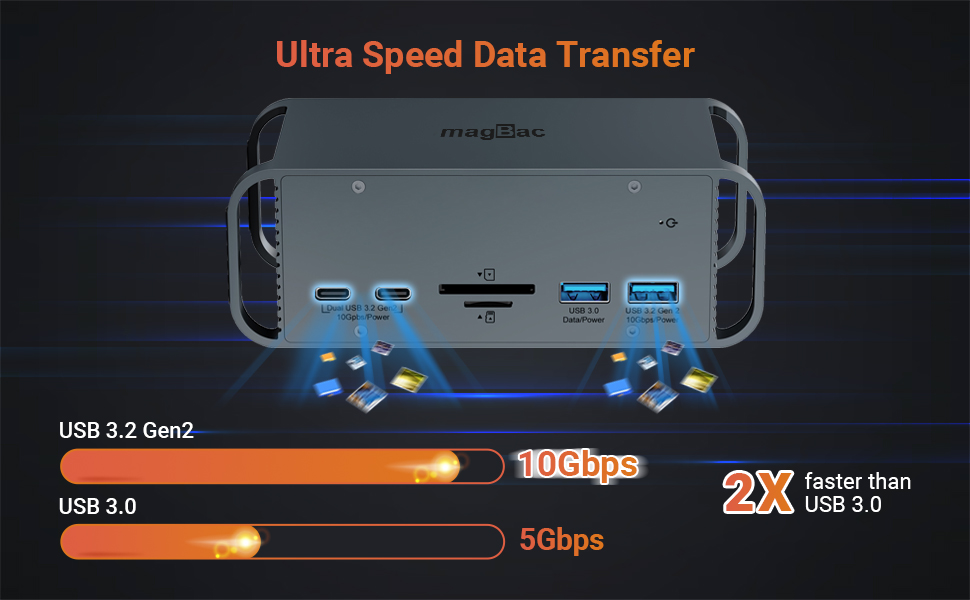

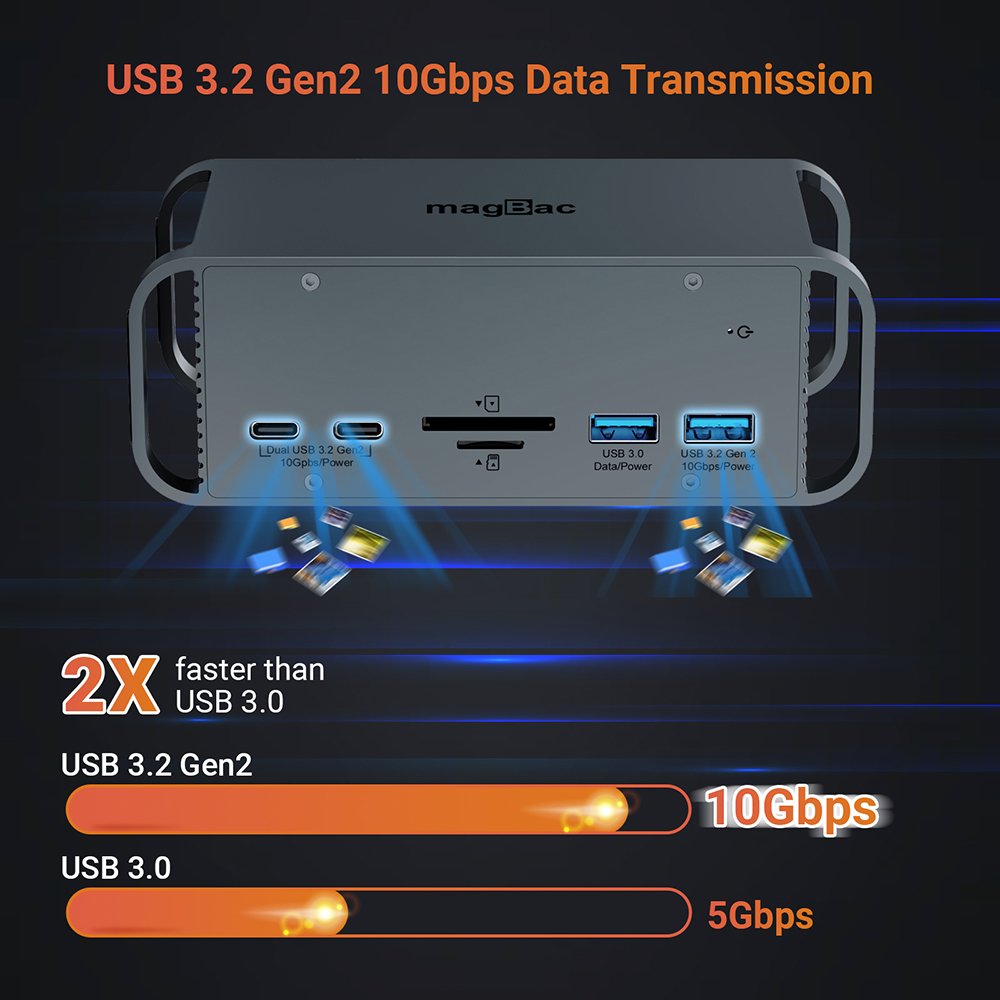

10Gbps Data Transmission speed: This laptop dock has 3*USB 3.2 GEN 2 ports offer a data transmission speed rate up to 10Gbps, transferring large files in seconds for smartphones, tablets, flash drive, hard drive and any compatible external storage; 2 * USB 3.0 and 2*USB 2.0 ports for keyboard and mouse.

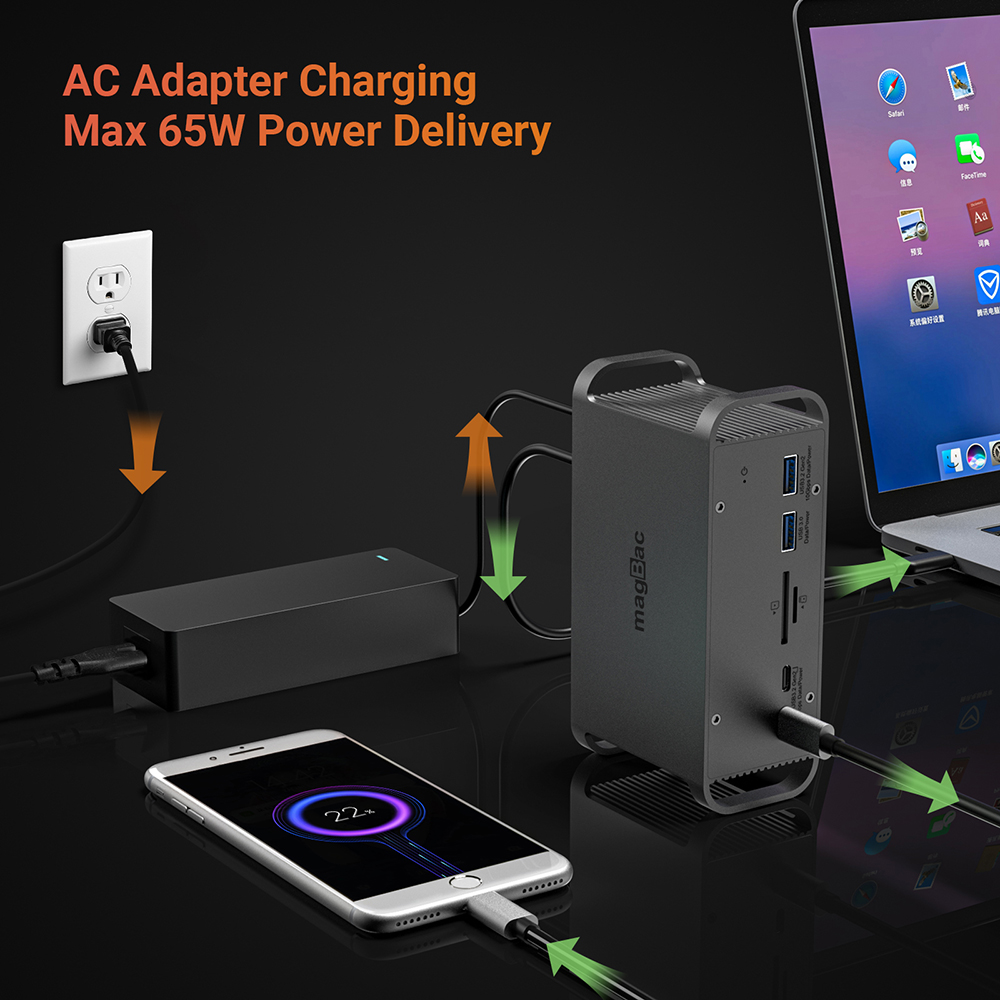

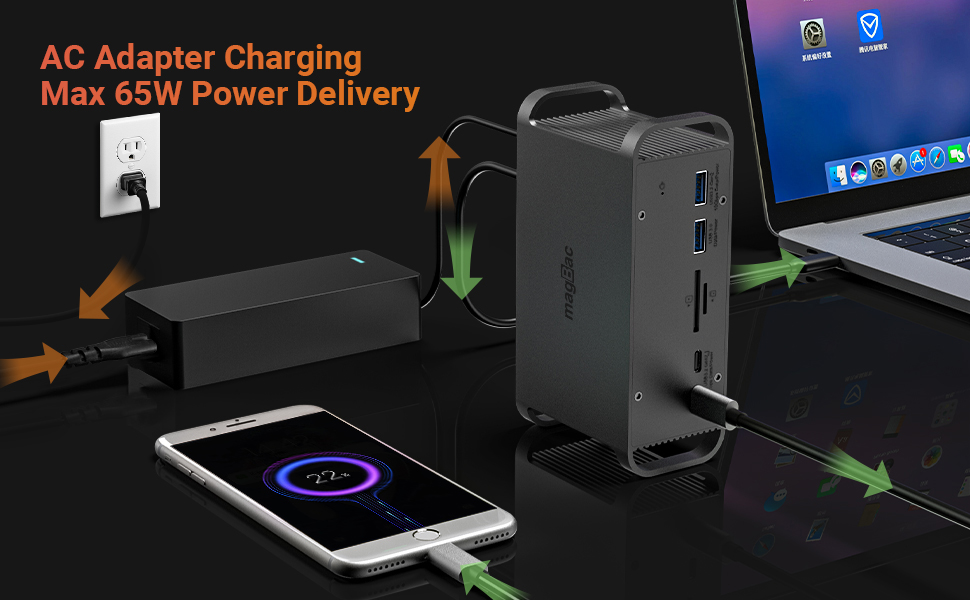

Super powerful standard 65W AC power adapter charges the docking station and laptop battery during operation.

Please noted: that the standard 65W power adapter must be plugged into the DC-IN port during the operation for all the function performance.

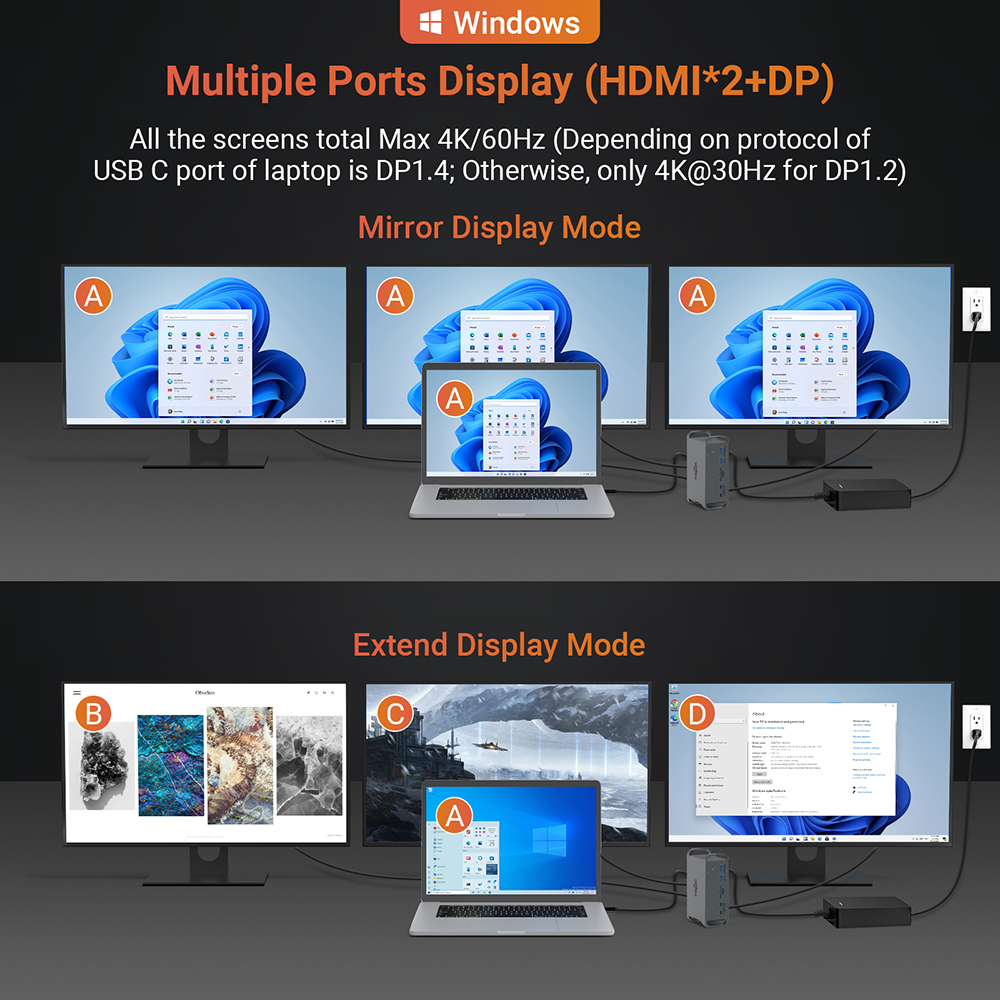

Mirror / Extend Mode for Windows & MacOS
Triple Extended Display: With 2 HDMI and 1 DP, this triple display docking station can cast up to 4 different contents on monitors;
the resolution is up to 4K@60Hz when using a single HDMI/DP port, 4k@30Hz when using 2 or 3 in Windows system (A-A+A+A or A-B+C+D) .

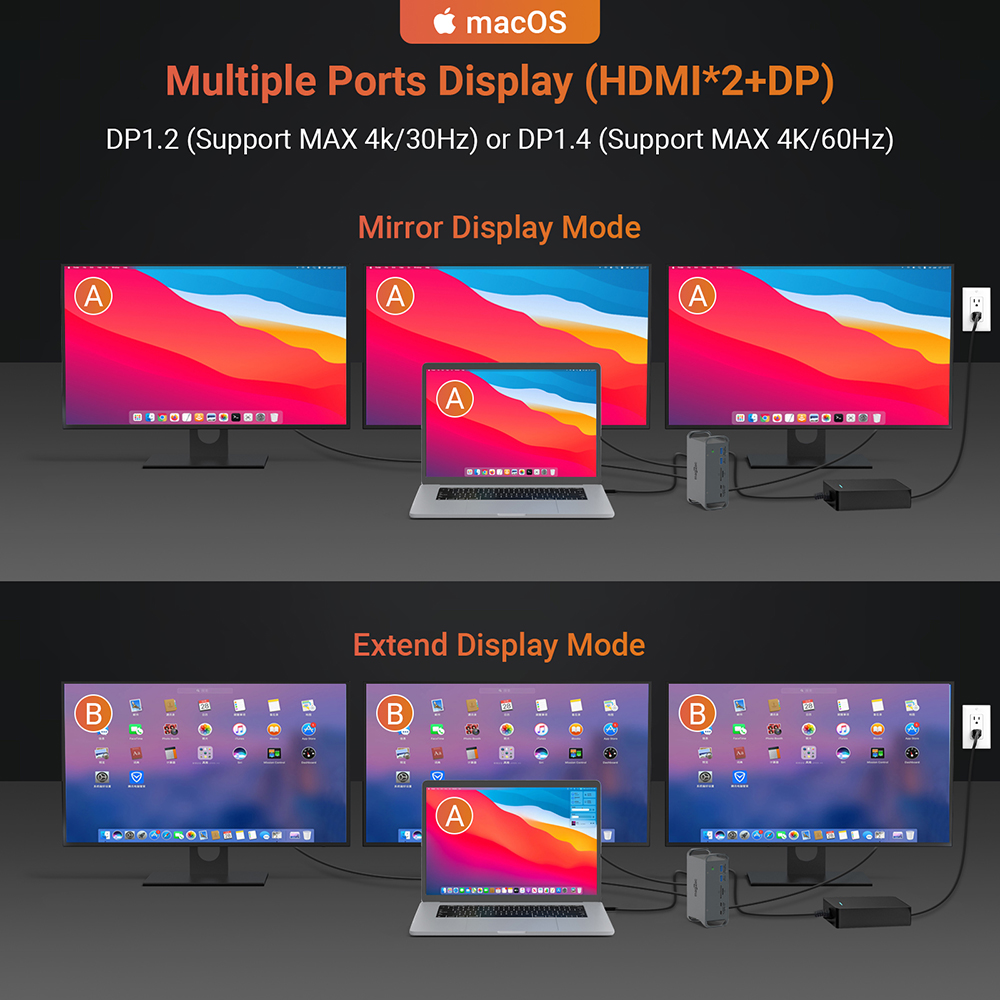

Please Noted: MacOS DOES NOT support MST mode, all monitors will mirror the desktop interface or only extend one different content (A-A+A+A or A-B+B+B mode).
Triple Display Docking Station

4 Monitors cast different contents display simultaneously for Windows
Pleaea Noted: Your laptop should have a full functional USB C port with DP1.4 Alt mode protocol to support cast 4 monitors.

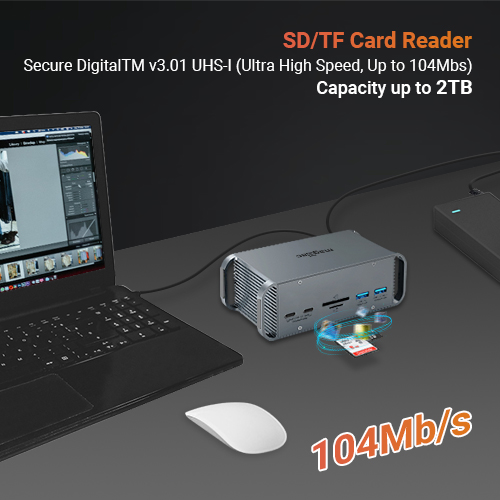

Ultra Speed SD/TF Card Reader

Built-in SD/TF cards slots can read and write files simultaneously, whcih can read a maximum of 2TB memory card with a rate of up to 104Mb/s.





Tech Specs
